Removal

REMOVAL

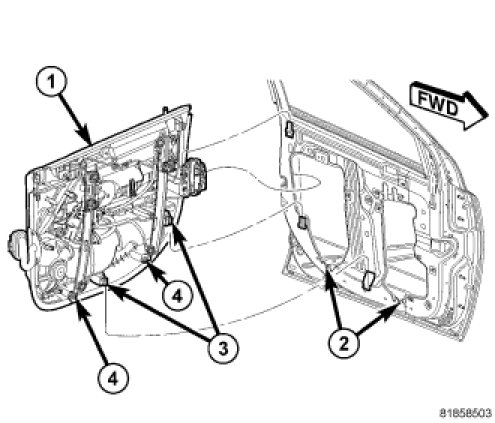

1. Remove the door trim module (1) Refer to Trim Panel.

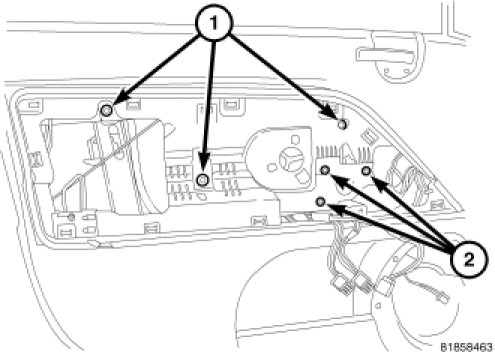

2. Remove the motor or manual lift mechanism screws (2).

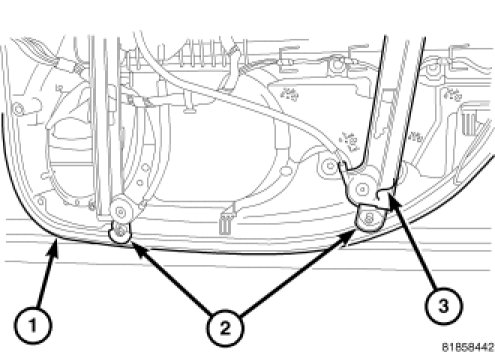

3. Remove the lower regulator screws (2).

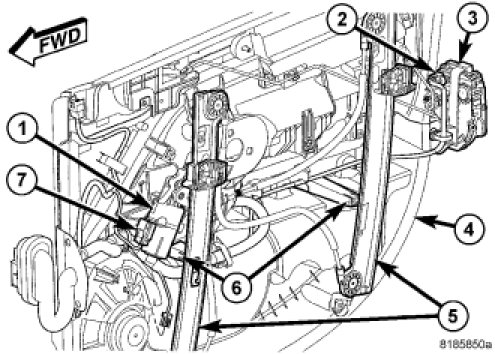

4. Disconnect the regulator motor (1) electrical connector (7), if equipped.

5. Separate the regulator runners (5) from the support brackets (6) and remove the regulator assembly.
