CROSSMEMBER-Rear Suspension

Fig 1: SWAY BAR BUSHINGS
GC0055412Courtesy of CHRYSLER LLC
  1. Install the stabilizer bar and install the bushings and bolts (1).
  2. Tighten the bolts to 61 N.m (45 ft. lbs.).
  3. Position the suspension knuckle assemblies back into position onto the crossmember.
    4. Fig 2: TOE LINK
    GC0052904Courtesy of CHRYSLER LLC
  4. Install the toe link cam bolts (1) at the cradle.
  5. Tighten the bolts to 35 N.m (26 ft. lbs.).
    Fig 3: REAR UPPER CONTROL ARM MOUNTING
    GC0052903Courtesy of CHRYSLER LLC
  6. Install the upper link bolts (2) at the cradle.
  7. Tighten the bolts to 90 N.m (70 ft. lbs.).
    Fig 4: REAR LOWER CONTROL ARM MOUNTING
    GC0052902Courtesy of CHRYSLER LLC
  8. Install the lower link bolts (5 and 6) at the cradle.
  9. Tighten the bolts to 90 N.m (70 ft. lbs.).
    Fig 5: REAR STABILIZER BAR LINK
    GC0052899Courtesy of CHRYSLER LLC
  10. Install the stabilizer link nuts (2).
  11. Tighten the nuts to 58 N.m (43 ft. lbs.).

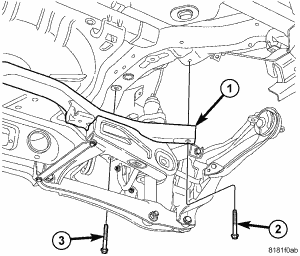

    Fig 6: REAR CROSSMEMBER 2
    GC0055411Courtesy of CHRYSLER LLC
  12. Support the rear cradle assembly (1) with a suitable lifting device and position back into the vehicle.
  13. Install the cradle bolts (2 and 3):
    • Tighten the front bolts (2) first to 110 N.m (81 ft. lbs.).
    • Tighten the rear bolts (3) next to 110 N.m (81 ft. lbs.).
    Fig 7: REAR CROSSMEMBER 1
    GC0055410Courtesy of CHRYSLER LLC
  14. Install the trailing link (1) bushing bolts (2 and 3):
    • Tighten the inboard bolts (3) first to 110 N.m (81 ft. lbs.).
    • Tighten the outboard bolts (2) next to 110 N.m (81 ft. lbs.).
    Fig 8: LOWER STRUT MOUNTING
    GC0052900Courtesy of CHRYSLER LLC
  15. Install the lower strut bolts (1).
  16. Tighten the bolts to 99 N.m 73 ft. lbs.).
    Fig 9: HUB NUT AND WASHER
    GC0052877Courtesy of CHRYSLER LLC
  17. If equipped, install the rear half shafts.
  18. Install the nuts (3) and washers (4).
  19. Tighten the nuts to 244 N.m (180 ft. lbs.).
  20. Install new cotter pins (2).
    Fig 10: REAR AXLE REMOVE AND INSTALL
    GC0052947Courtesy of CHRYSLER LLC
  21. Install the rear drive module (1). Refer to INSTALLATION .
  22. Install the wheel speed sensor back. Refer to INSTALLATION .
    Fig 11: BRAKE LINE MOUNTING TO TRAILING ARM
    GC0052907Courtesy of CHRYSLER LLC
  23. Position the brake lines (3) back into place, connect the clips (2) and install the bolts (1).
  24. Tighten the bolts to 15 N.m (11 ft. lbs.).

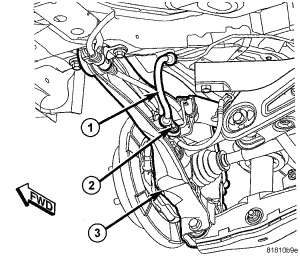

    Fig 12: BRAKE HOSE MOUNTING TO TRAILING ARM
    GC0052906Courtesy of CHRYSLER LLC
  25. Position the brake lines (1) back into place, and install the bolts (2).
  26. Tighten the bolts to 23 N.m (17 ft. lbs.).
    27. Fig 13: PARKING BRAKE CABLE HAIR PIN
    GC0052910Courtesy of CHRYSLER LLC
  27. Install the brake cable (2) onto the backing plate (3) and install the hair pin clip (1).
    Fig 14: Removing/Installing Cable
    GC0022734Courtesy of CHRYSLER LLC
  28. Connect the brake cable to the park brake lever.
  29. Install the park brake shoes. Refer to INSTALLATION .
  30. Check and adjust wheel alignment as necessary. Refer to STANDARD PROCEDURE .
