Engine Mount - Left

Fig 1: Left Mount
GC0054965Courtesy of CHRYSLER LLC
  1. Position mount (2) in place.
  2. Install left mount to frame rail bolts (1) and torque to 75 N.m (55 ft. lbs.).
  3. Install mount through bolt (3) and torque to 100 N.m (74 ft. lbs.).
  4. Remove jack.

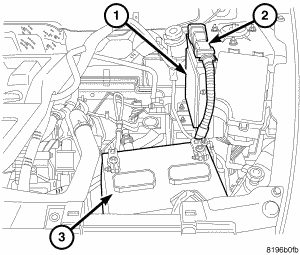

    Fig 2: Battery, Negative Battery Cable & PCM
    GC0054966Courtesy of CHRYSLER LLC
  5. Install PCM mounting bracket.
  6. Install PCM (1).
  7. Connect negative cable to battery (3).
    Fig 3: Air Cleaner Housing Assembly
    GC0054967Courtesy of CHRYSLER LLC
  8. Install air cleaner housing (1) and air cleaner inlet (2).
