Belt-Accessory Drive: Installation: Installation-Diesel

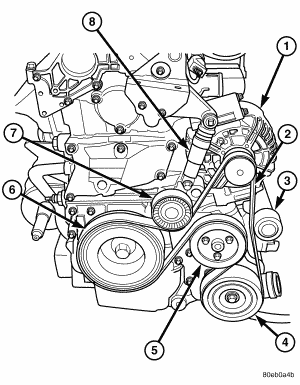

Fig 1: Accessory Drive Belt - Diesel Engine

Courtesy of CHRYSLER LLC

1 - GENERATOR

2 - ACCESSORY DRIVE BELT

3 - IDLER PULLEY

4 - A/C COMPRESSOR

5 - POWER STEERING PUMP

6 - CRANKSHAFT PULLEY/VIBRATION DAMPER

7 - BELT TENSIONER PULLEY

8 - BELT TENSIONER

NOTE: When installing accessory drive belt, be sure belt is routed around all accessories correctly.

1. Install belt over all pulleys except for the power steering pump pulley (5). See REMOVAL .
2. Using a wrench, rotate belt tensioner (8) clockwise until belt can be installed onto power steering pump pulley (5). Release spring tension onto belt.
3. Install belt splash shield. See REMOVAL .
4. Lower vehicle from hoist.
