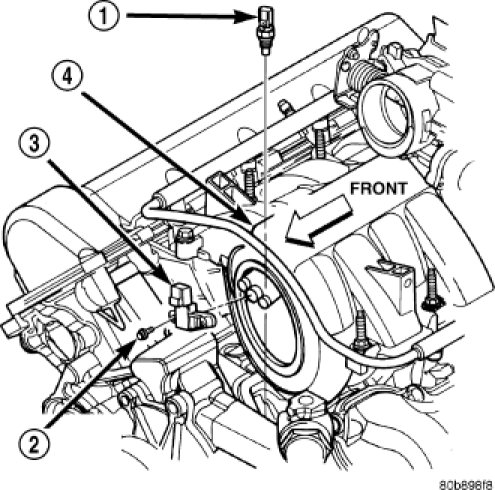

Installation






4.7L




1. Install sensor.
2. Tighten to 11 Nm (8 ft. lbs.) torque.
3. Connect electrical connector to sensor.
4. Replace any lost engine coolant.
