Installation

INSTALLATION

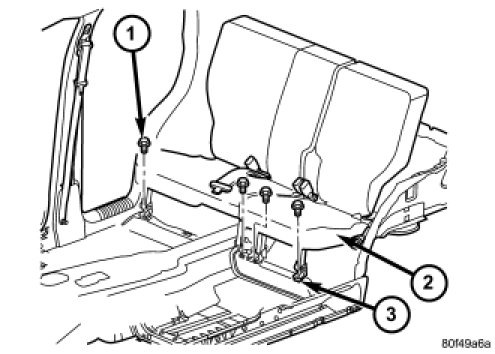

1. Install the seat assembly and position over the studs.

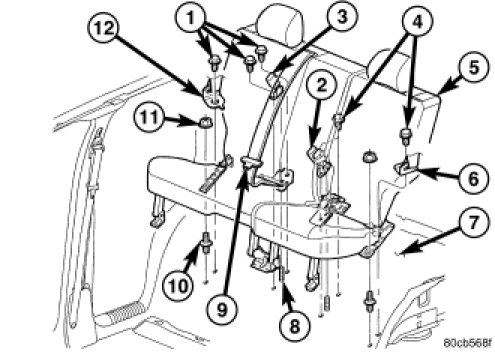

2. Open the seat back and engage the latches onto the latch strikers.

3. Install the rear outboard nuts and tighten to 43 Nm (32 ft. lbs.).

4. Install the outer seat belt anchors.

5. Install the inner seat belt buckles.

6. Install the center seat belt anchor.




7. Install the front outer seat cushion leg bolts and tighten to 35 Nm (26 ft. lbs.)
