Power Outlet-Rear

Component ID: 198
Component : POWER OUTLET-REAR

Connector:
Name : POWER OUTLET-REAR
Color :
# of pins : 3




Pin Description Circuit
1 FUSED B(+) A305 16RD/LB
2 - -
3 GROUND Z934 16BK

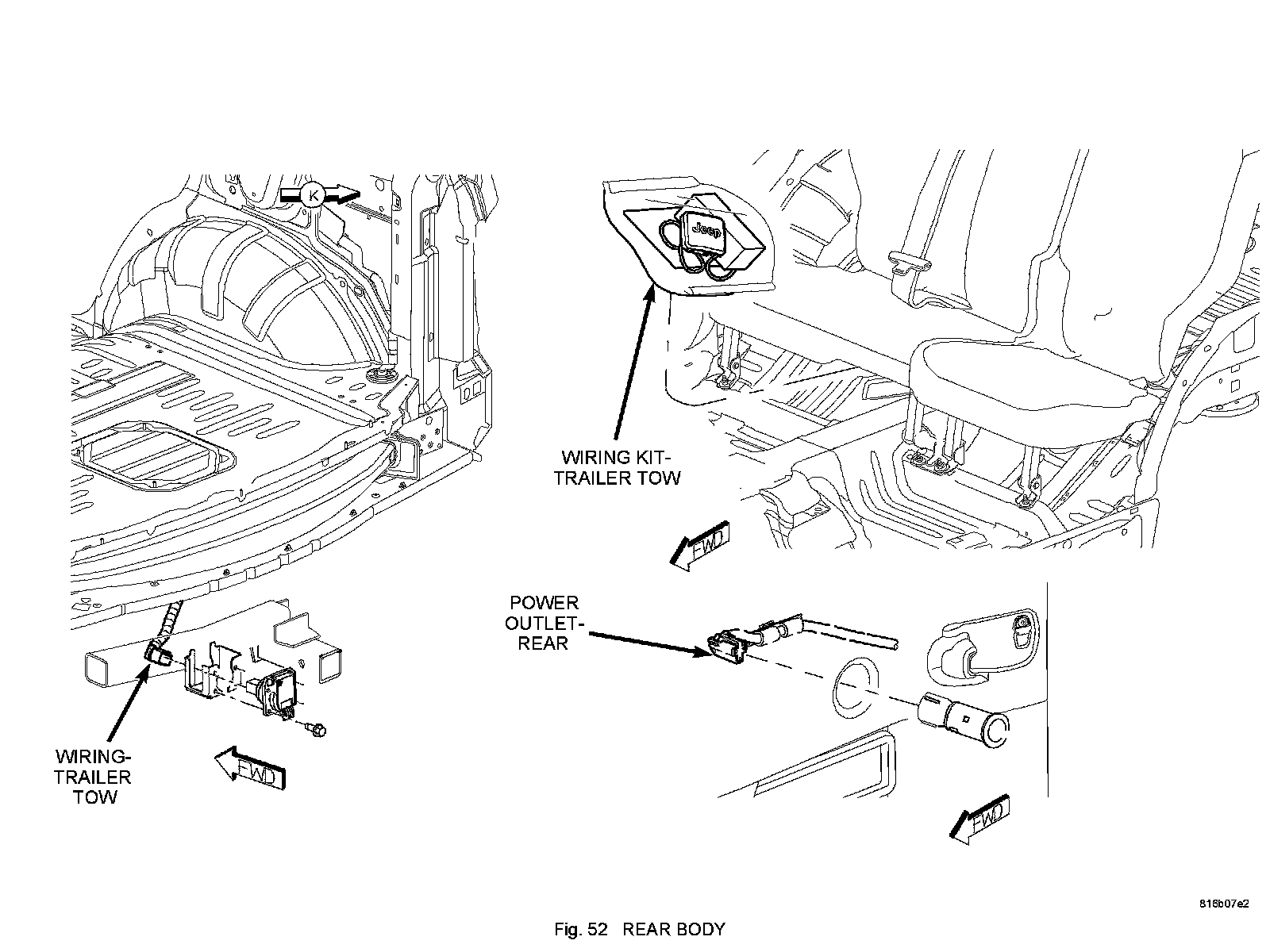

Component Location - 52

Fig. 52:

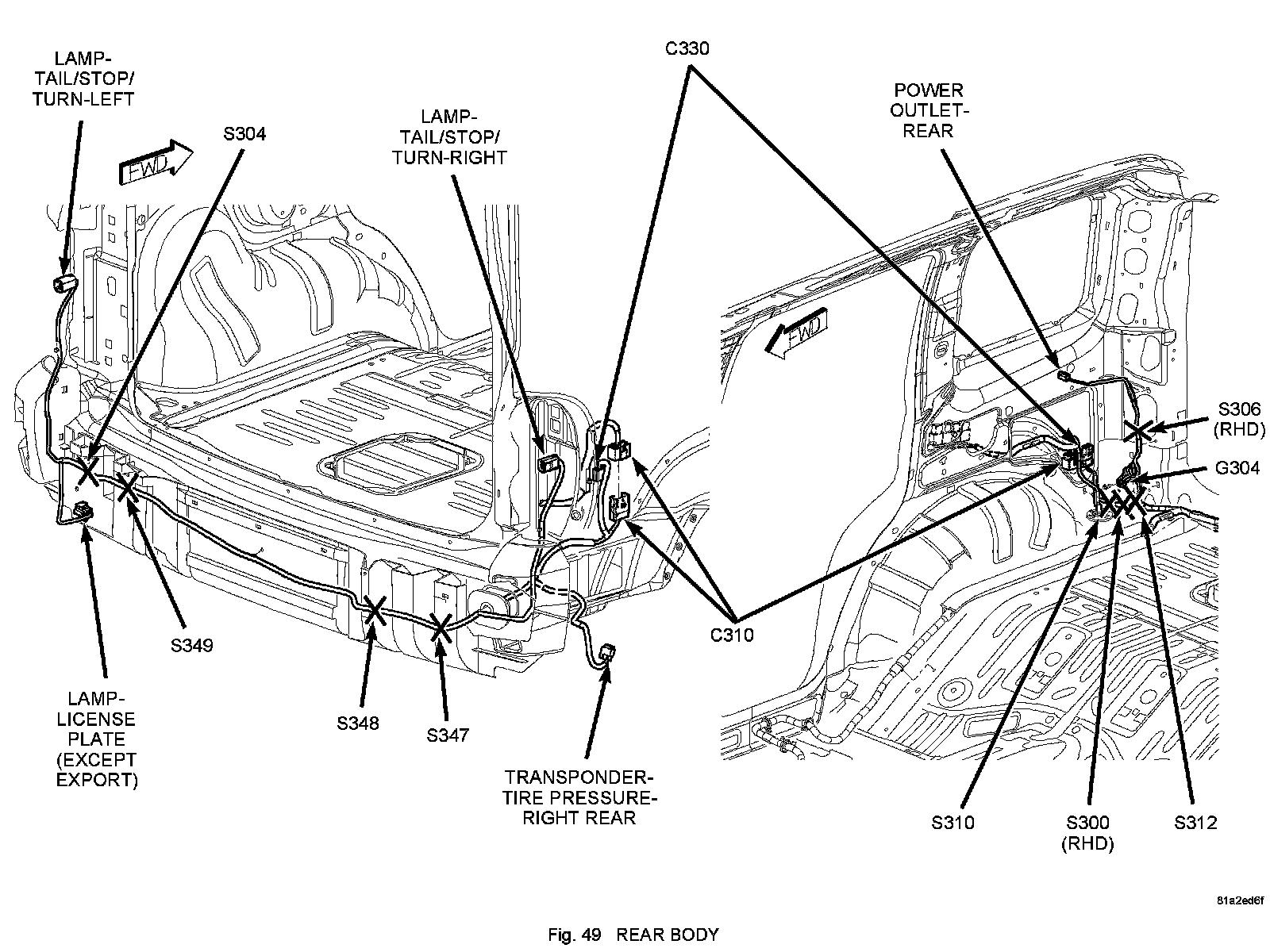

Component Location - 49

Fig. 49:
