Braking Sensor/Switch




Component ID: 469
Component : SWITCH-RED BRAKE WARNING INDICATOR

Connector:
Name : SWITCH-RED BRAKE WARNING INDICATOR
Color :
# of pins : 2




Pin Description Circuit
1 RED BRAKE WARNING INDICATOR DRIVER B20 20DG/OR
2 GROUND Z932 20BK

Component Location - 29

Fig. 29:

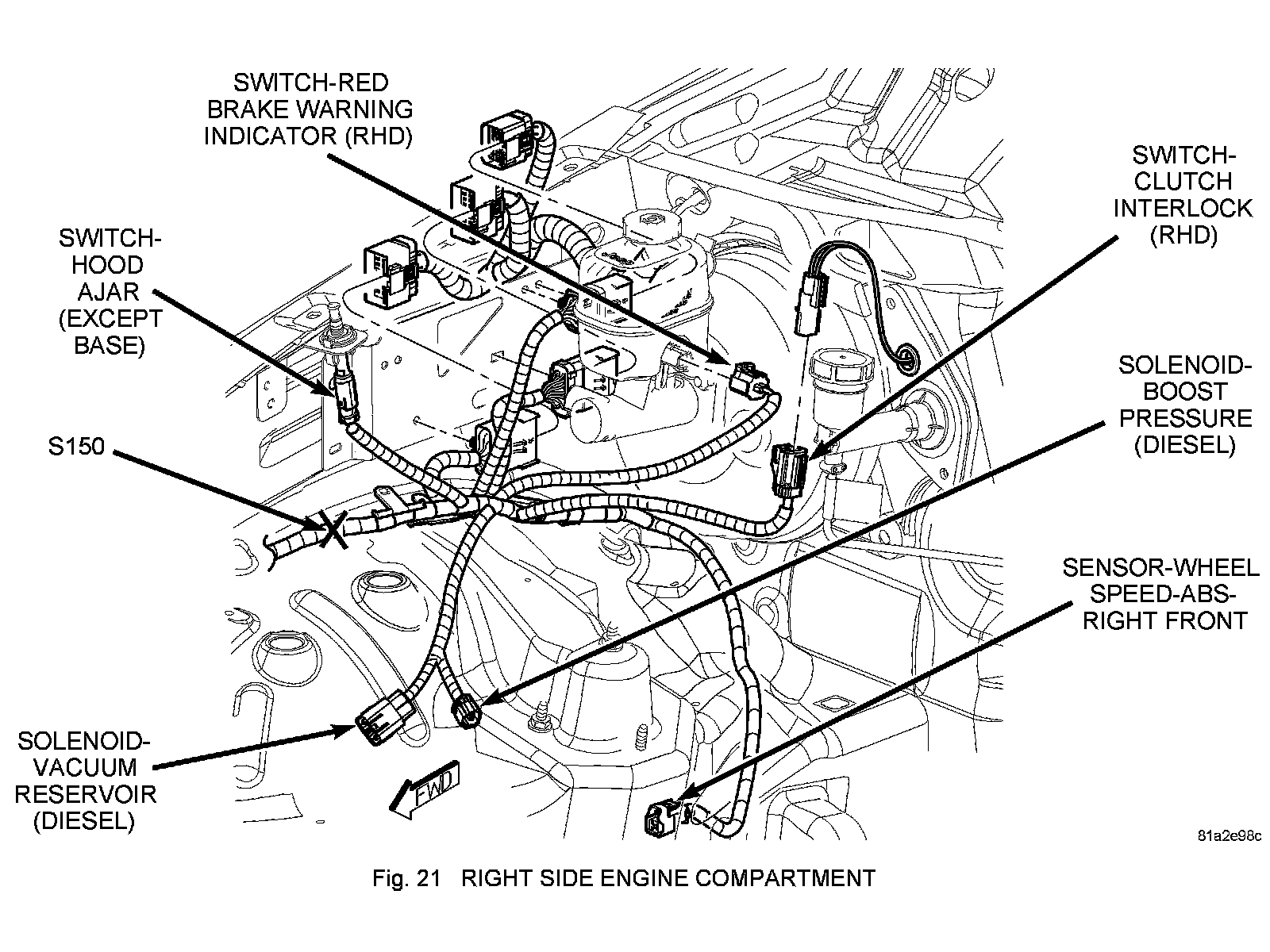

Component Location - 21

Fig. 21:
