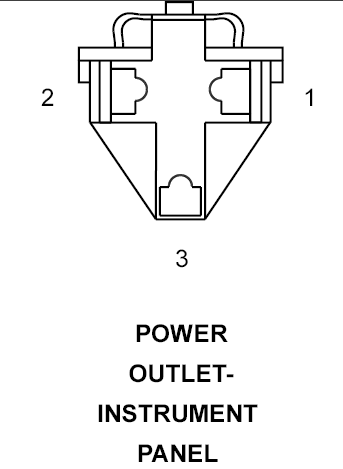

Power Instrument Panel Outlet Connector End View
POWER OUTLET-INSTRUMENT PANEL - 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A207 16RD/LG |
FUSED B(+) (LHD) |
| 1 |
F307 16LB/PK |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) (RHD) |
| 2 |
- |
- |
| 3 |
Z940 16BK |
GROUND |
