Module-Powertrain Control: Removal: Removal

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

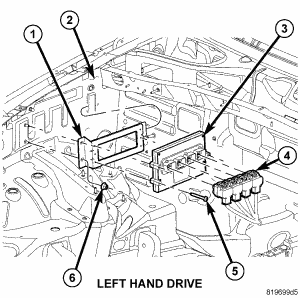

Fig 1: PCM Location - Left Hand Drive
GC0061538Courtesy of CHRYSLER LLC

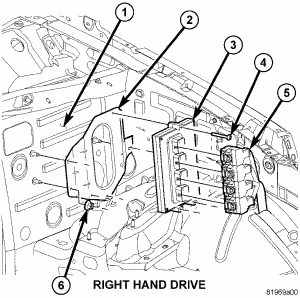

Fig 2: PCM Location - Right Hand Drive
GC0061539Courtesy of CHRYSLER LLC
  1. The PCM (Powertrain Control Module) (3-Right Hand Drive), or (3-Left Hand Drive) is located in the engine compartment.
  2. Disconnect negative battery cable.
  3. Disconnect PCM electrical connectors (5-Right Hand Drive), or (4-Left Hand Drive).
  4. Remove PCM mounting screws (4-Right Hand Drive), or (5-Left Hand Drive).
  5. Remove PCM (3-Right Hand Drive), or (3-Left Hand Drive) from vehicle.
