Home >> Jeep >> 2007 >> Wrangler Sahara, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B1C28 To B2208 >> B212D-Ignition Run Only Input Circuit Open >> Circuit Schematic
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Circuit Schematic

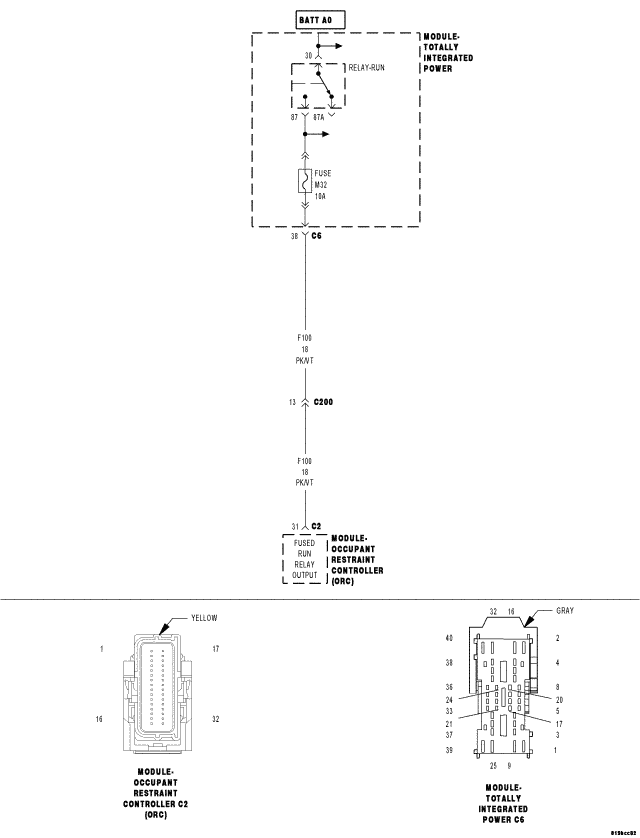

Fig 1: Ignition Run Only Input Circuit Schematic
GC0061867Courtesy of CHRYSLER LLC
