Installation






INSTALLATION

Front

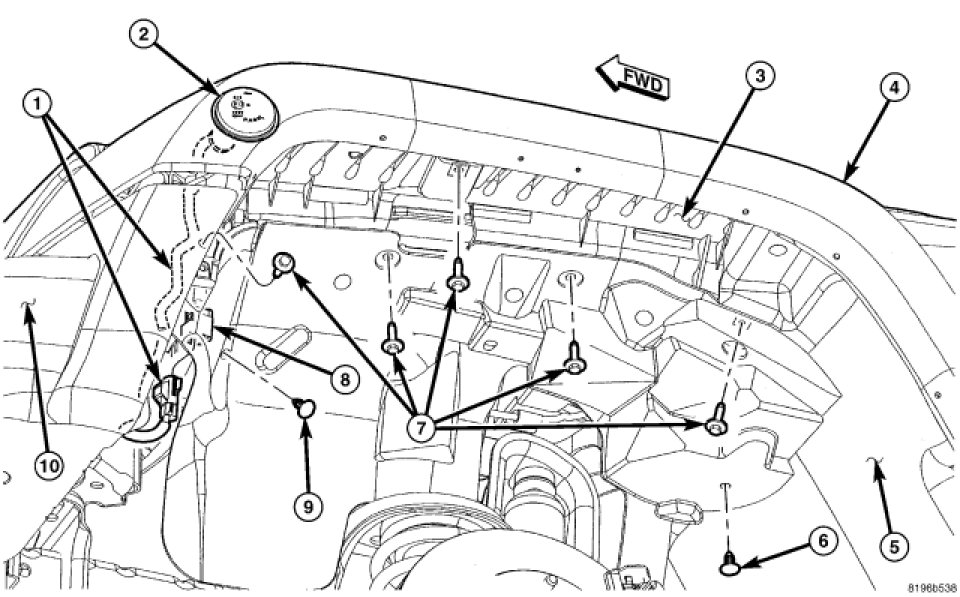

1. Install the front wheel house liner to front wheel house opening.

2. Install the wheel speed sensor harness (1) to the wheel house liner.

3. Install the push/pins (6), (9) to the wheel house liner.

4. Install the all bolts (7) to the wheel house liner and tighten to specifications.

5. Install wheel and tire and torque to specifications.


Rear

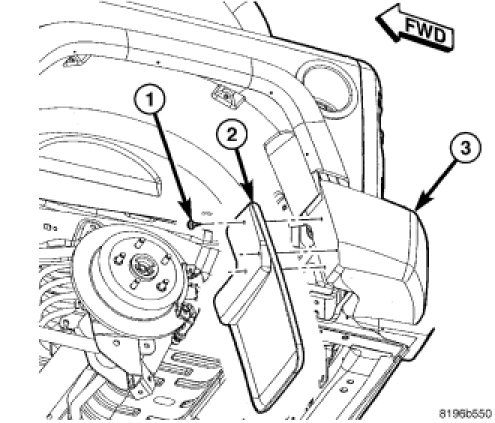

1. If equipped, install the splash guard (2) and install the screws.

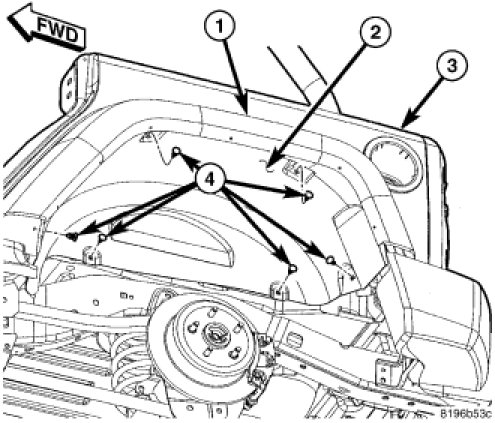

2. Install the splash shield (2) and install the push pin fasteners (4).

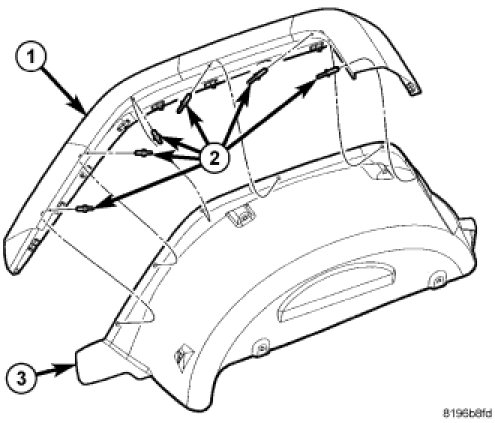

3. Install the flare molding rivets (2).
