Installation
INSTALLATION
1.

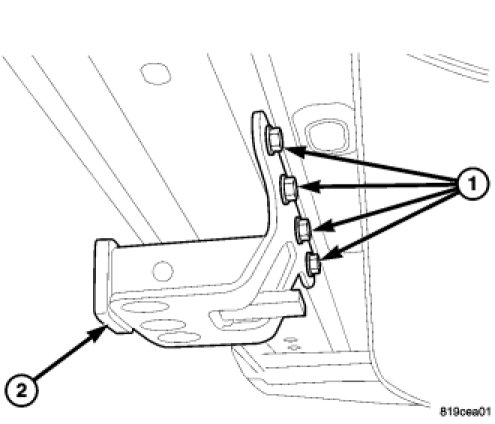

Install the hitch (2) and install the bolts (1).
2.
Tighten the bolts to
81 Nm (60 ft. lbs.)
3.

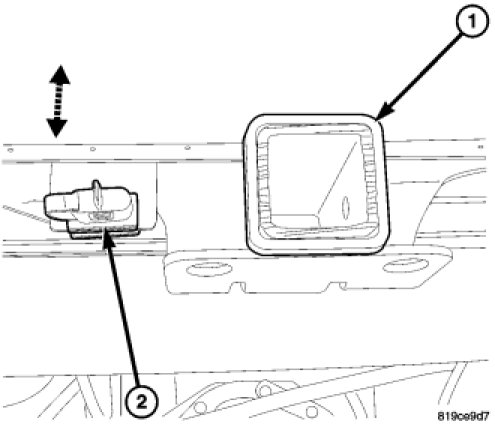

Install the wire harness connector (2) onto the hitch (1).
