Installation






INSTALLATION

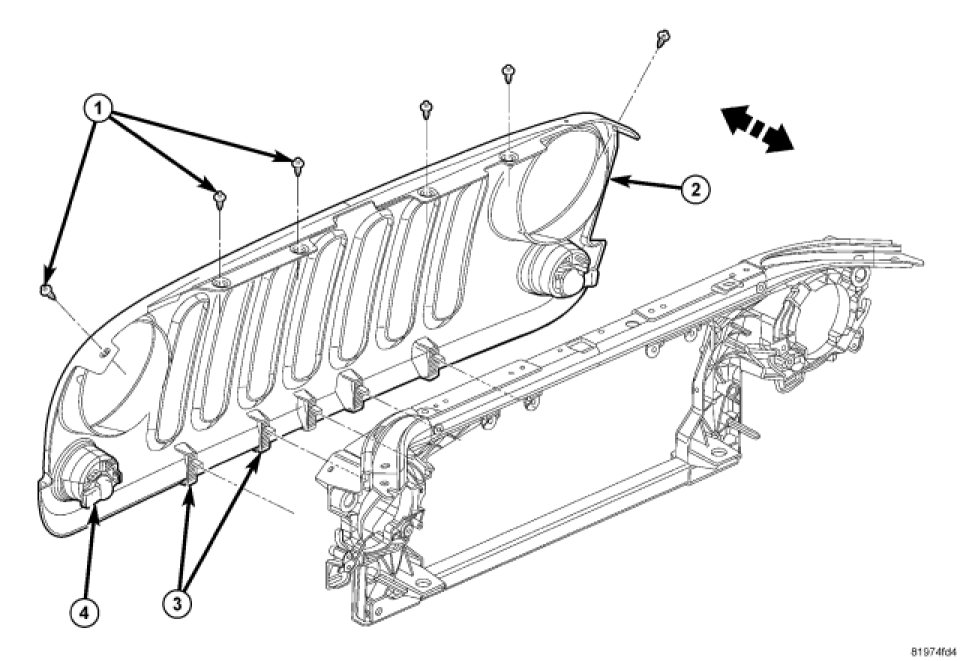

1. Connect the electrical connectors (4).

2. Position the grille (2) onto the front end module and seat the clips (3) fully.

3. Install the push pin fasteners (1).
