Circuit Schematic

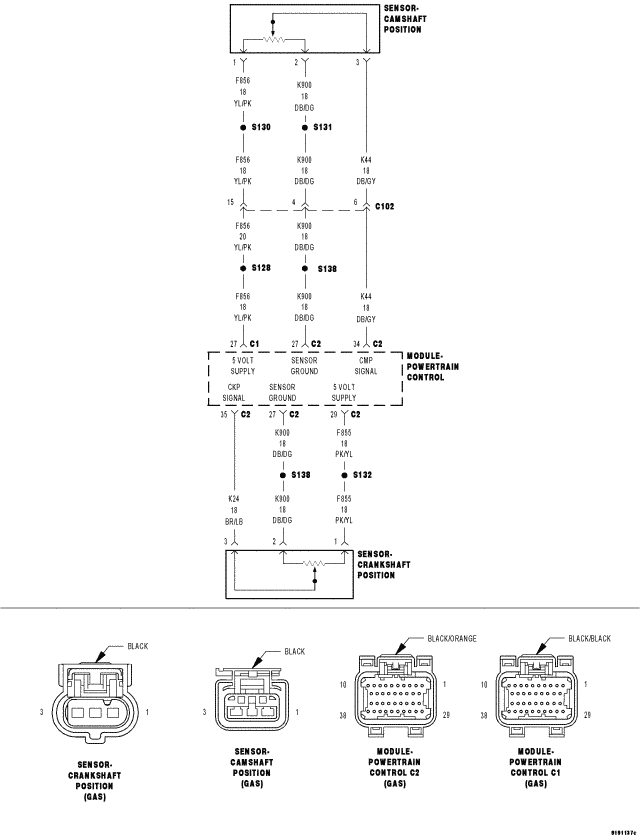

Fig 1: Crankshaft/Camshaft Position Sensor Circuit Schematic

Courtesy of CHRYSLER LLC
