Front Locker Switch (Off-Road) Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

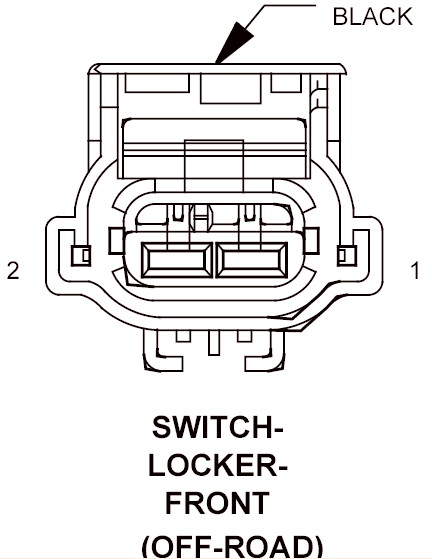

Front Locker Switch (Off-Road) Connector End View
SWITCH-LOCKER-FRONT - BLACK 2-WAY (OFF-ROAD)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T522 18YL/LB
FRONT LOCKER SWITCH SENSE
2
K91 18DB/YL
SENSOR GROUND
