Transponder-Tire Pressure-Right Front

Component ID: 597
Component : TRANSPONDER-TIRE PRESSURE-RIGHT FRONT

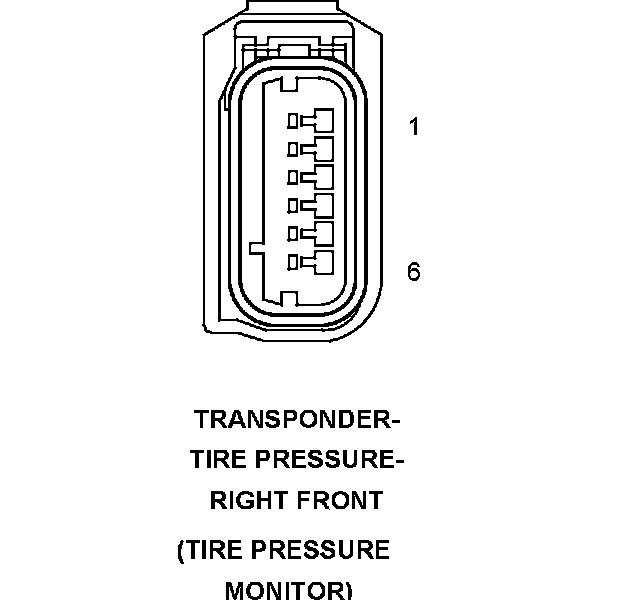

Connector:
Name : TRANSPONDER-TIRE PRESSURE-RIGHT FRONT
Color :
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Circuit Description
1 F924 20PK/YL FUSED RUN RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z924 20BK/OR GROUND
4 - -
5 Z924 20BK/YL GROUND
6 - -

Component Location - 10
