A/C Compressor - Description

A/C COMPRESSOR

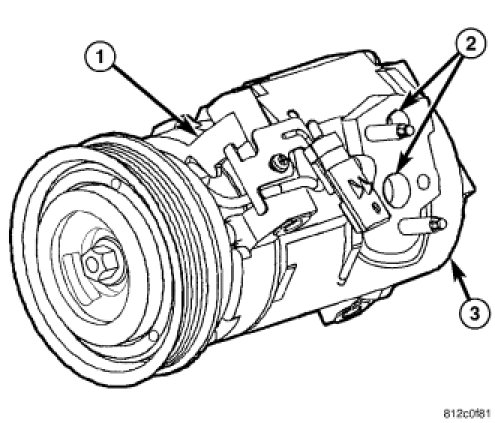

The A/C system uses a Denso 10S17C ten cylinder, double-acting swash plate-type A/C compressor (1). This A/C compressor has a fixed displacement of 170 cubic centimeters (10.374 cubic inches), and has both the suction and discharge ports (2) located on the cylinder head (3) at the rear of the compressor.

A label identifying the use of R-134a refrigerant is located on the A/C compressor.
