Installation







INSTALLATION

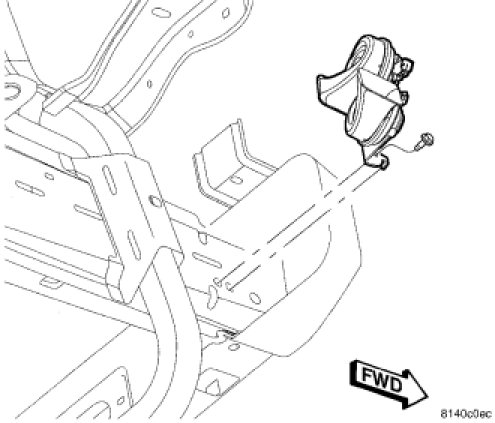

1. Position both horns and the mounting bracket.
2. Install and tighten the mounting fastener.
3. Connect the electrical harness connectors.
4. Install the lower front half of the inner liner to the right front fender wheel house.
5. Lower the vehicle.
6. Connect the battery negative cable.
