Third Row

INSTALLATION

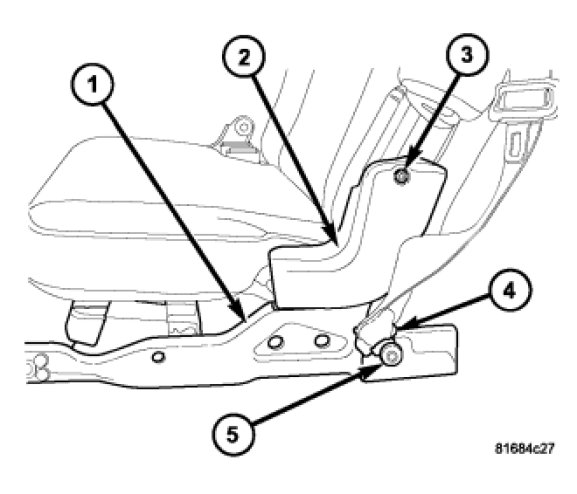

1. Position the seat belt lower anchor (4) to the outboard rear corner of the third row seat support bracket (1). Be certain that the belt webbing is not twisted between the top of the seat back and the lower anchor.
2. Install and tighten the screw (5) that secures the lower anchor to the seat support bracket. Tighten the screw to 43 Nm (32 ft. lbs.).

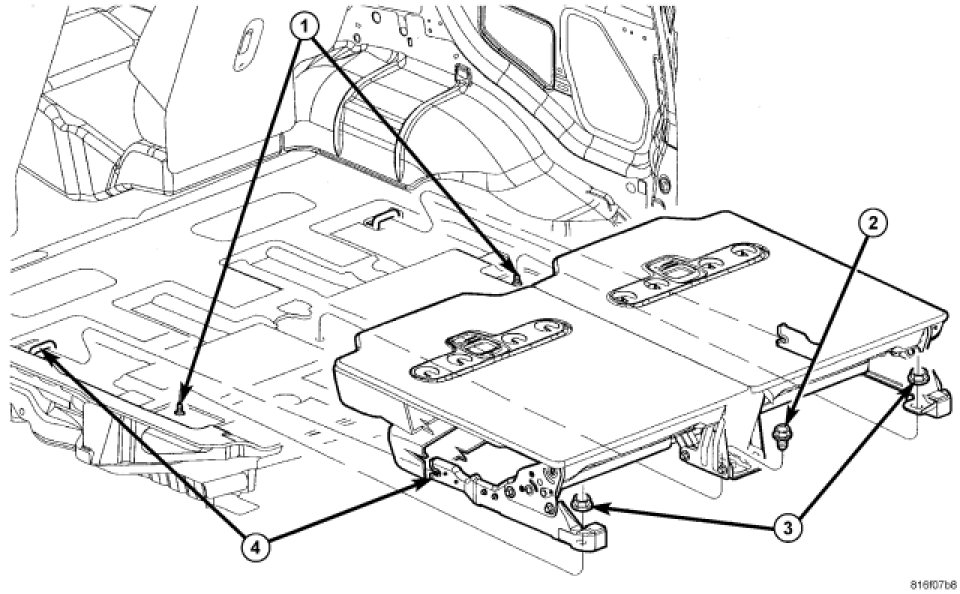

3. Position the seat into the vehicle and align the front hooks with the strikers (4).
4. Position the rear of the seat over the rear studs and locator pins (1).
5. Install the center nut and bolt (2) and tighten to 50 Nm (37 ft. lbs.).
6. Install the outer nuts (3) and tighten to 50 Nm (37 ft. lbs.).

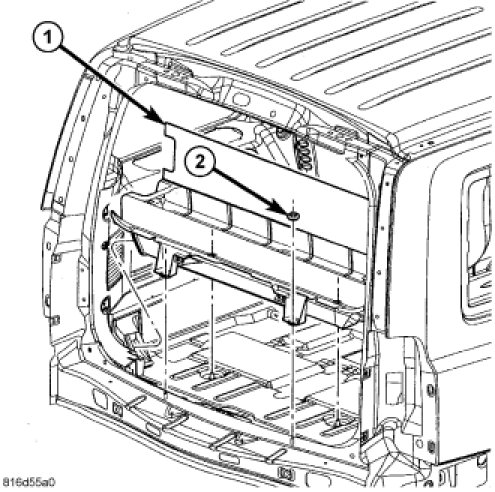

7. Install the cargo load floor Load Floor - Installation.
