Installation

INSTALLATION

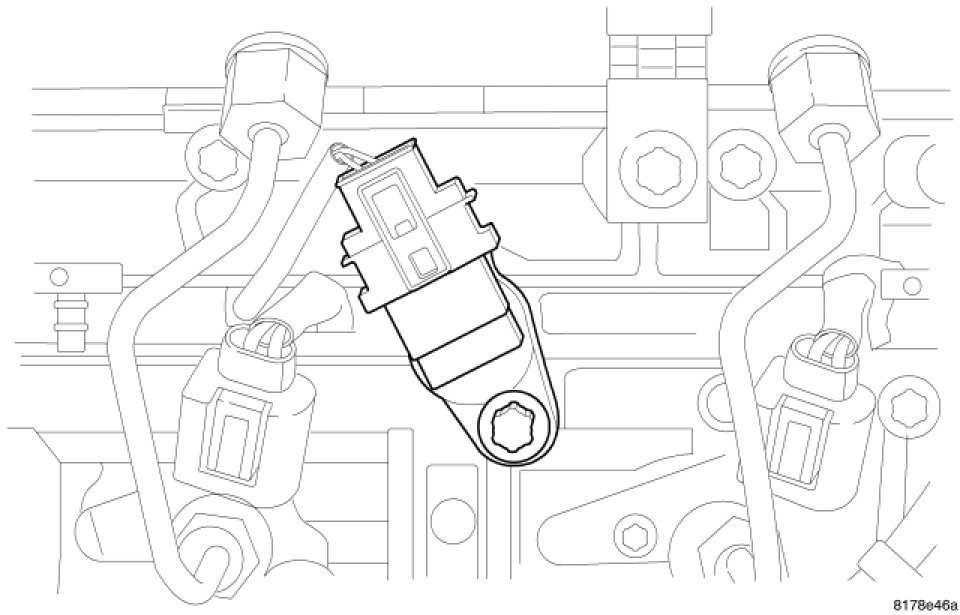

1. Install camshaft position sensor and tighten bolt to 8 Nm (71 in.lbs.).
2. Reconnect electrical connector.
3. Install engine cover.
4. Reconnect negative battery cable.
