Lamp-Reading-Front

Component ID: 171
Component : LAMP-READING-FRONT

Connector:
Name : LAMP-READING-FRONT
Color : BLACK
# of pins : 3




A M27 20YL/LB READING/RAIL LAMPS DRIVER
B Z919 20BK/DB GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER

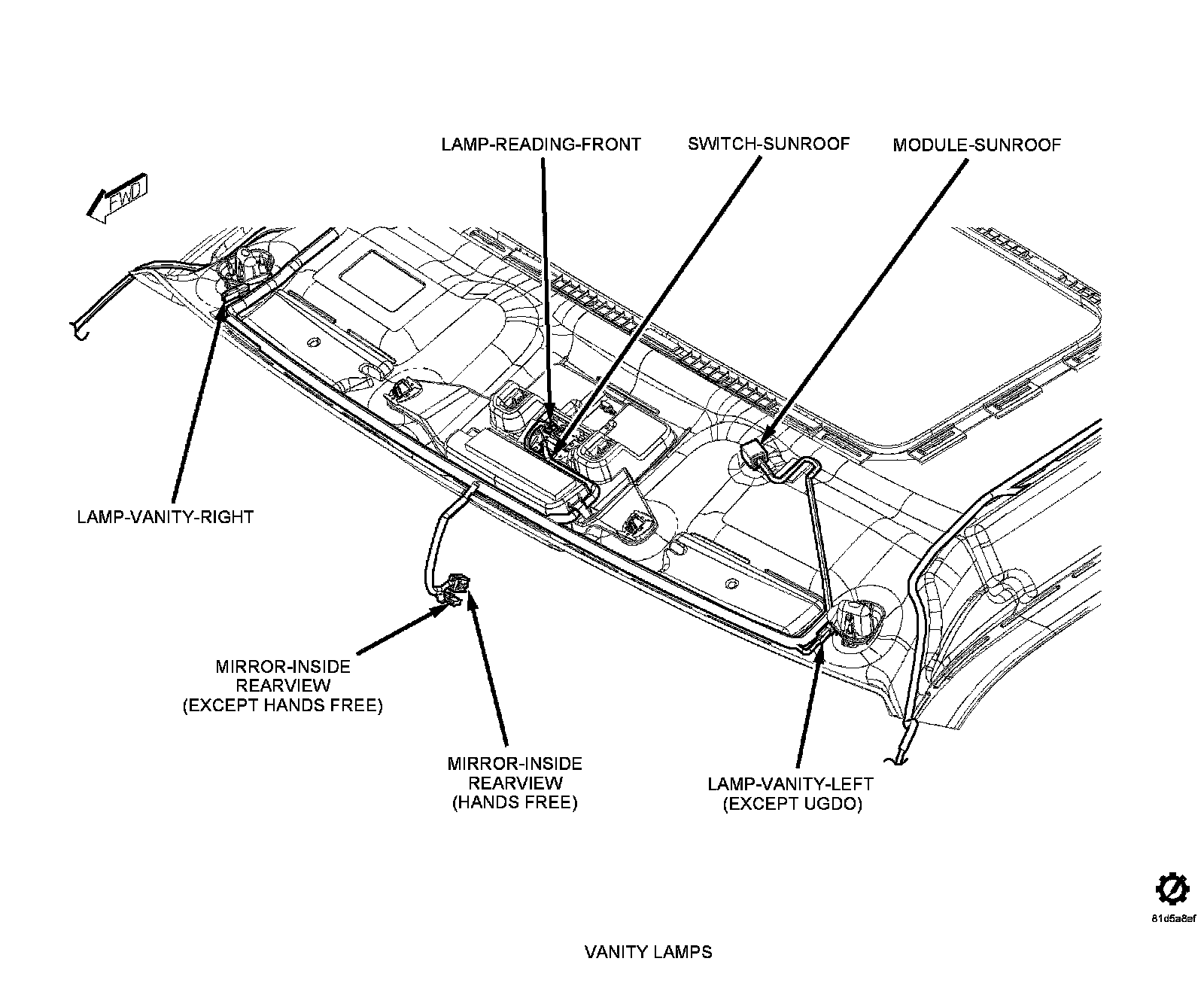

Component Location - 29
