Sensor-Wheel Speed-ABS-Left Rear

Component ID: 415
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B4 18LG LEFT REAR WHEEL SPEED SENSOR SUPPLY
2 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL

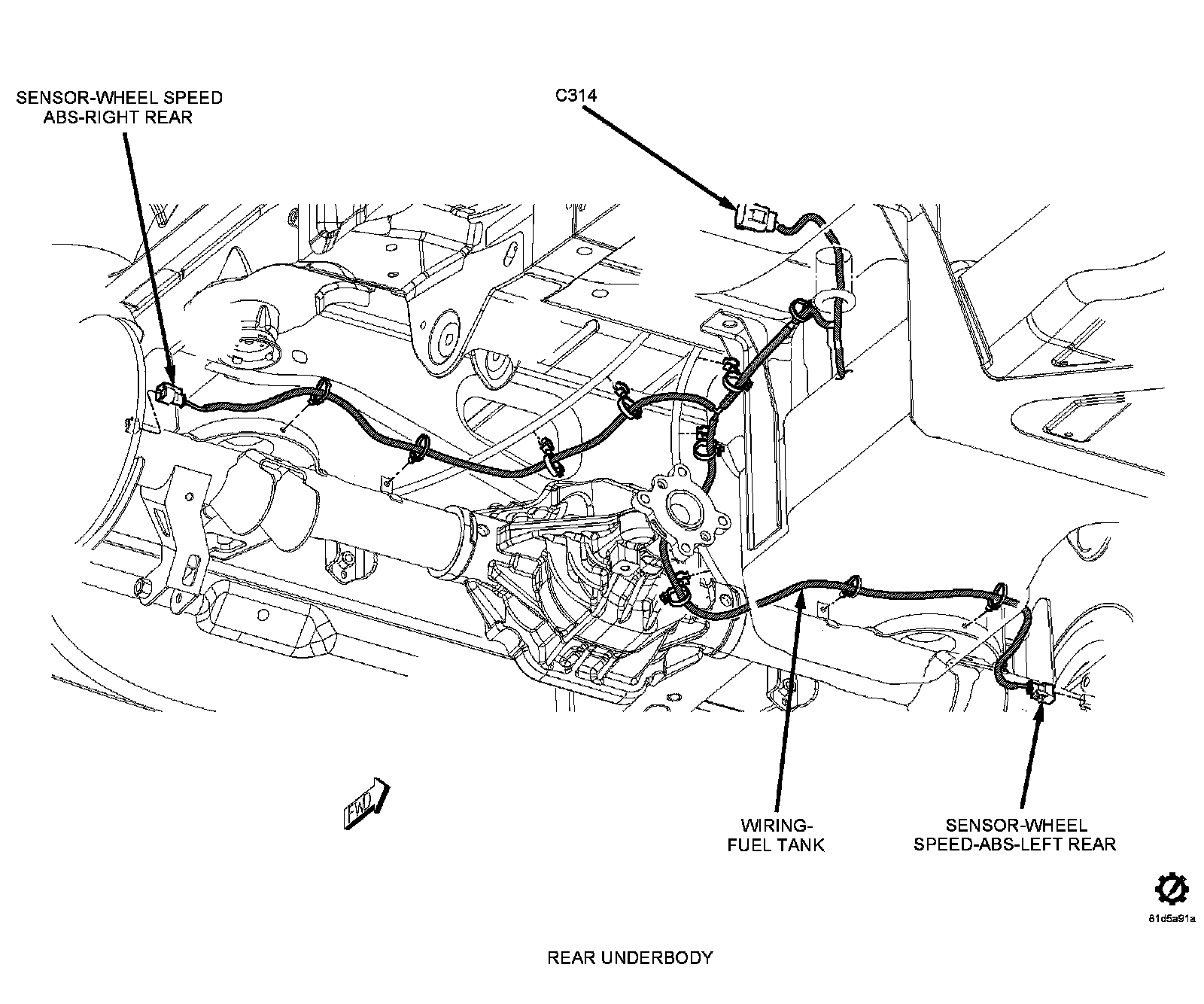

Component Location - 45
