Motor-Wiper-Rear

Component ID: 229
Component : MOTOR-WIPER-REAR

Connector:
Name : MOTOR-WIPER-REAR
Color : BLACK
# of pins : 5




Pin Circuit Description
1 A408 16WT/RD FUSED B(+)
2 Z920 16BK/LG GROUND
3 W13 16BR/LG REAR WIPER MOTOR CONTROL
4 W20 16BR/YL REAR WASHER PUMP MOTOR CONTROL
5 G80 20VT/YL FLIP-UP GLASS AJAR SWITCH SENSE

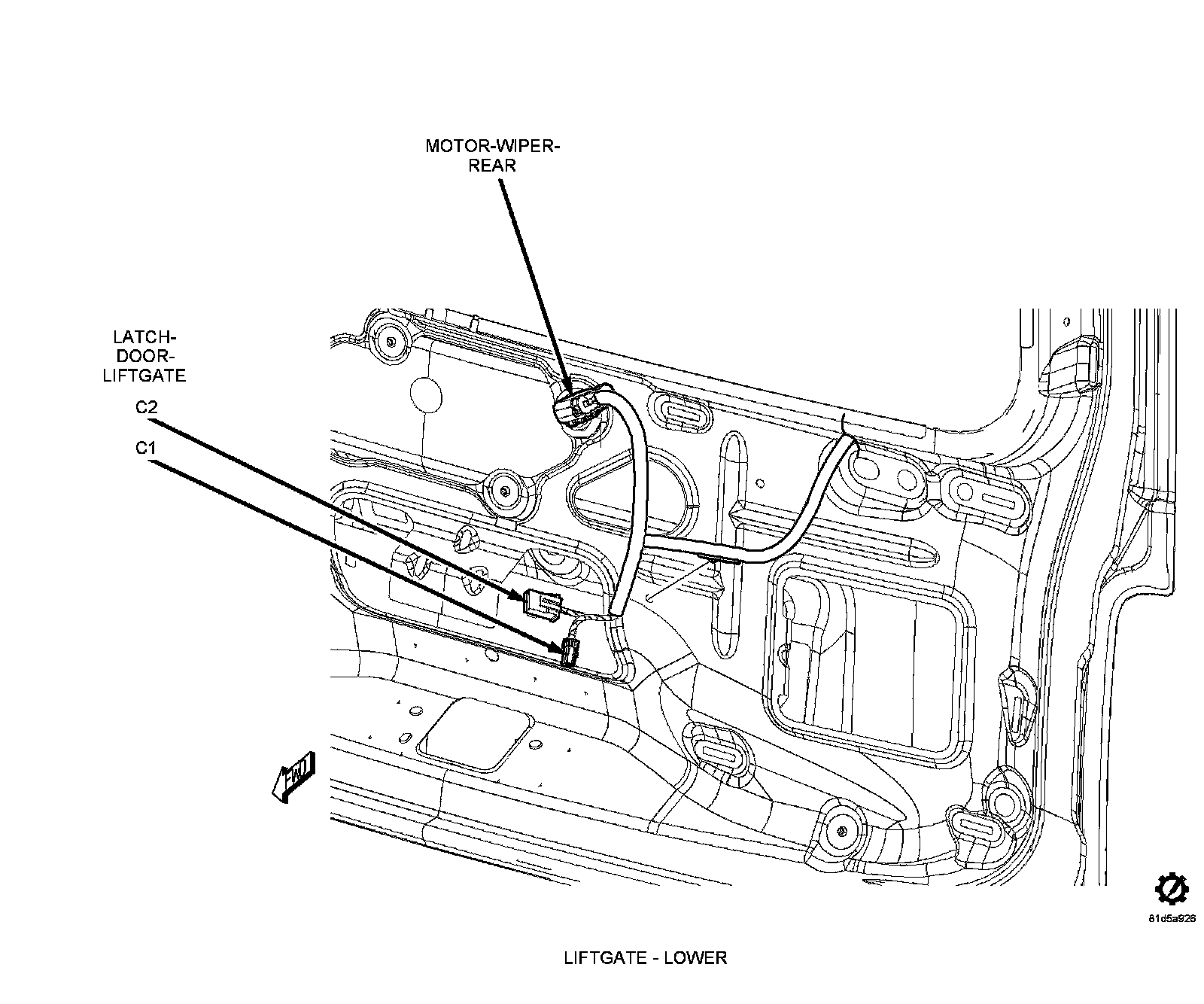

Component Location - 52
