Camshaft Position Sensor: Locations

Component ID: 368
Component : SENSOR-CAMSHAFT POSITION

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : GRAY
# of pins : 3
Qualifier : (3.7L)




Pin Circuit Description
1 K857 18BR/LG 5 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K44 18DB/GY CMP SIGNAL

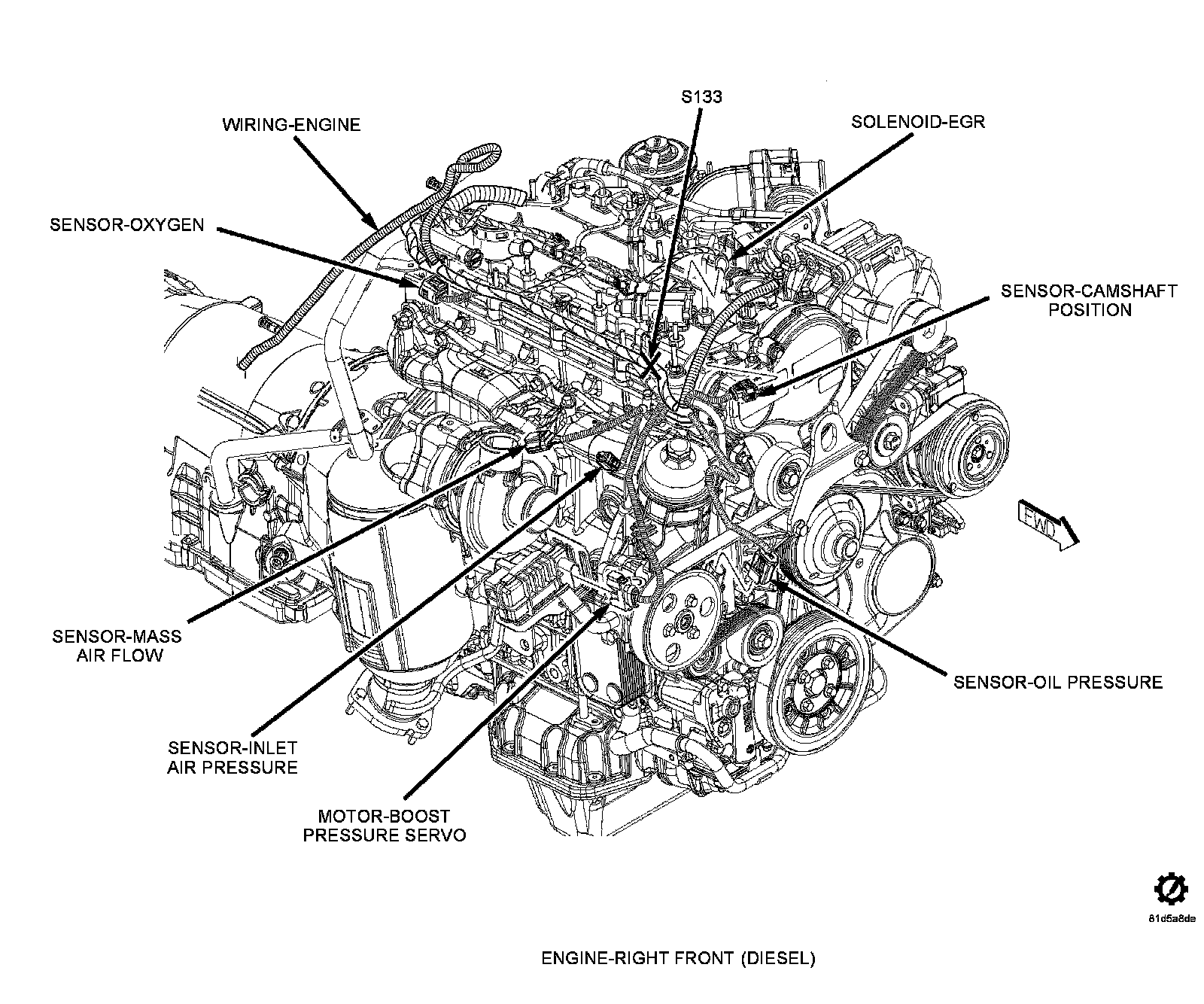

Component Location - 12




Component Location - 14




Component Location - 17






Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 K944 20BK/GY CMP RETURN
2 K44 20DB/GY CMP SIGNAL
3 K844 20DB/YL CMP 5 VOLT SUPPLY

Component Location - 12




Component Location - 14




Component Location - 17
