Sensor-Oxygen 1/2

Component ID: 391
Component : SENSOR-OXYGEN 1/2

Connector:
Name : SENSOR-OXYGEN 1/2
Color : BLACK
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 K299 18BR/WT O2 1/2 HEATER CONTROL
2 Z933 18BK GROUND
3 K904 18DB/DG O2 RETURN (DOWN)
4 K141 18DB/YL O2 1/2 SIGNAL

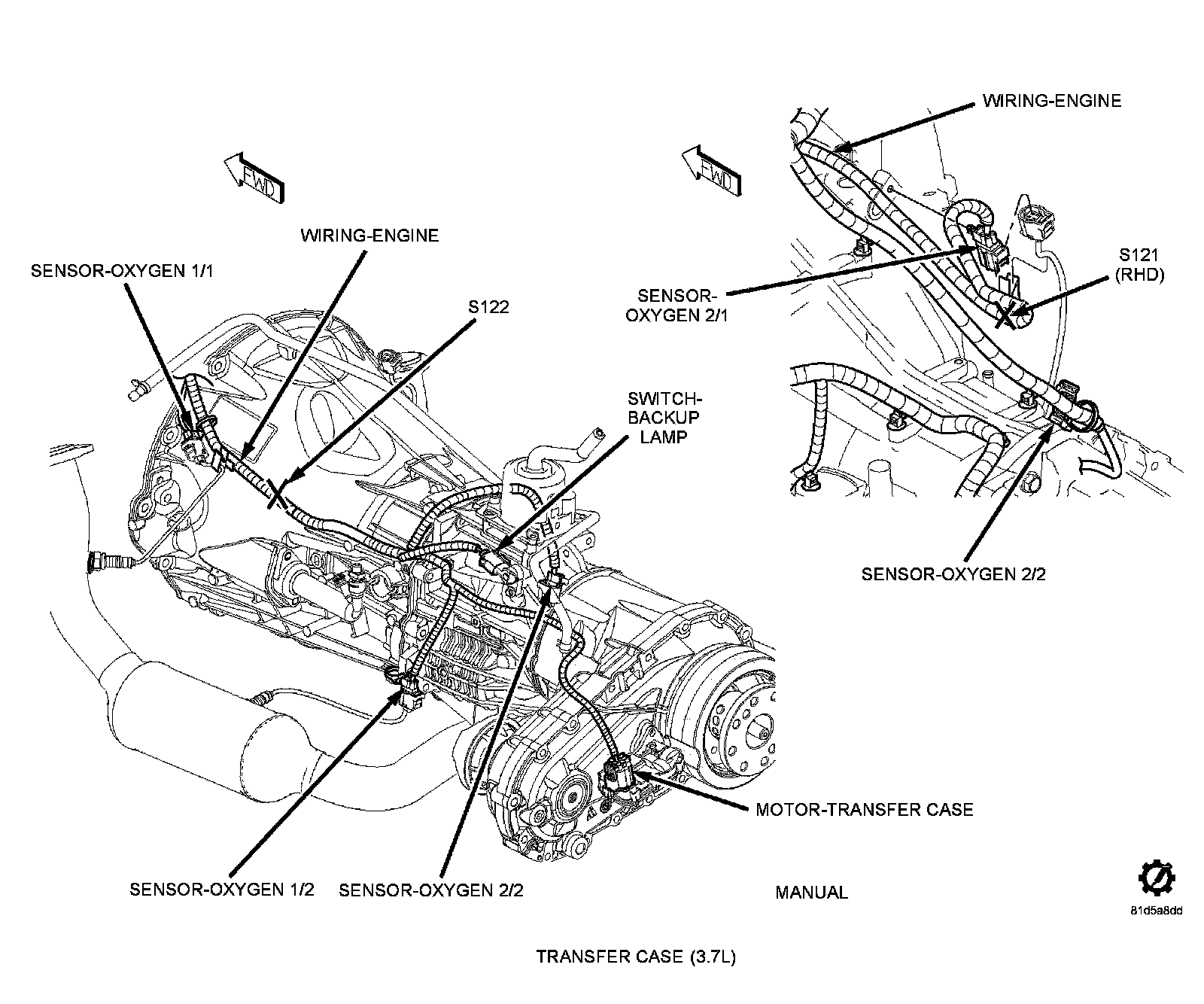

Component Location - 16




Component Location - 15
