Installation

INSTALLATION





NOTE: If the ABM module is being replaced with a new ABM module it must be reprogrammed with the use of a scan tool.

1. Install ABM module to the HCU unit (1).

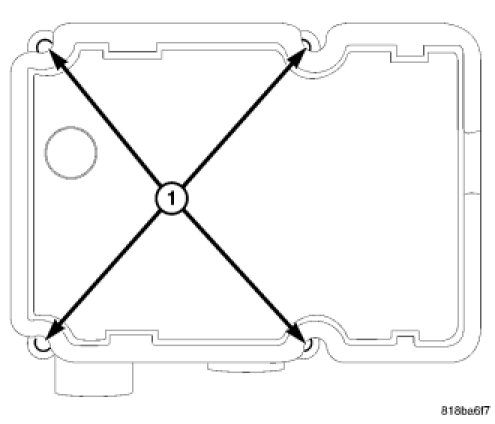

2. Install mounting screws (1). Tighten to 2 Nm (16 in. lbs.).
3. Install the wiring harness connector to the HCU unit and push down on the release to secure the connector.
4. Install negative battery cable to the battery.
