Removal
REMOVAL
1.
Disconnect and isolate the battery negative cable.
2.

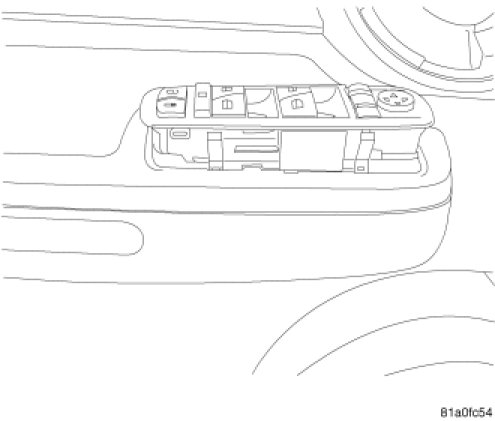

Gently pry the switch from the door trim panel.
3.
Disconnect electrical harness connector from switch.
