Seat Sensor/Switch

Component ID: 304
Component : SENSOR-SEAT TRACK POSITION-DRIVER

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 R261 20LB/WT DRIVER SEAT TRACK POSITION SENSOR SIGNAL
2 R263 20LB/VT DRIVER SEAT TRACK POSITION SENSOR SUPPLY

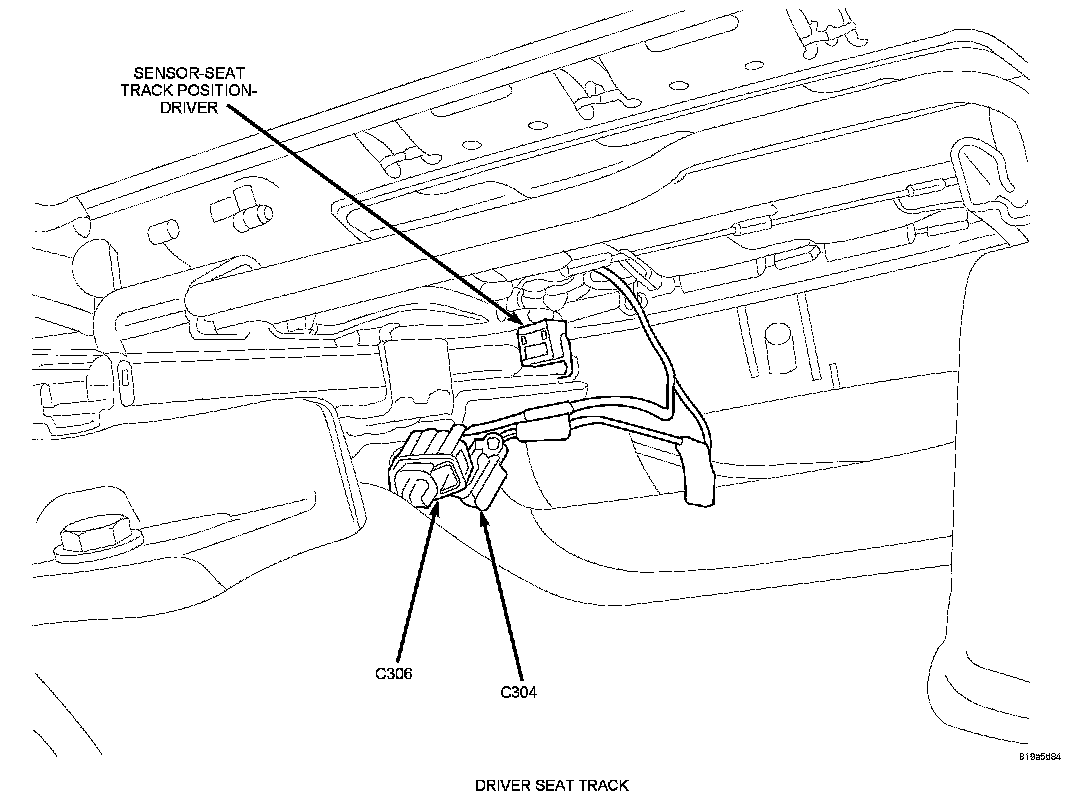

Component Location - 26
