Installation

INSTALLATION - 3.8L

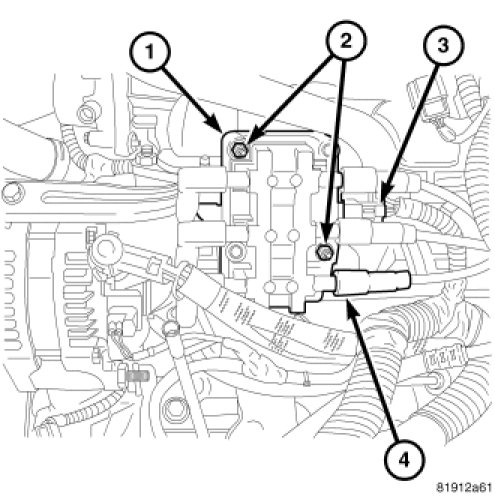

1. Install coil pack over mounting studs.
2. Install two mounting nuts (2).
3. Connect electrical connector (3) to ignition coil.
4. Install six ignition cables (4) to ignition coil.
5. Connect negative battery cable.
