Neutral Safety Switch: Locations

Component ID: 332
Component : SWITCH-CLUTCH INTERLOCK

Connector:
Name : SWITCH-CLUTCH INTERLOCK
Color : BLACK
# of pins : 3
Qualifier : (MTX)




Pin Circuit Description
1 T26 18DG/LB CLUTCH UPSTOP SIGNAL
2 T141 18YL/OR CLUTCH INTERLOCK SIGNAL
3 Z905 18BK GROUND

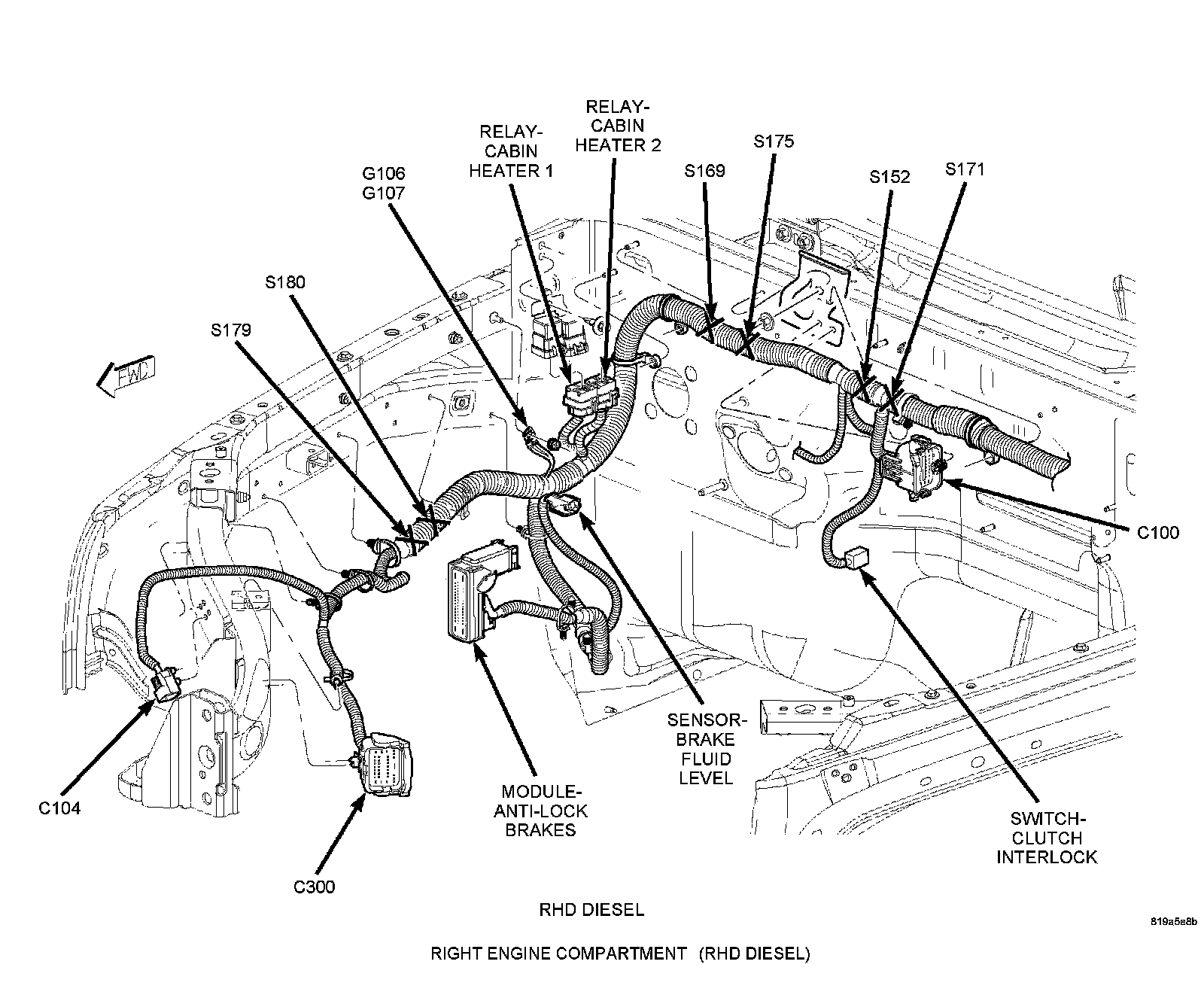

Component Location - 5




Component Location - 11




Component Location - 6




Component Location - 8
