Removal

REMOVAL

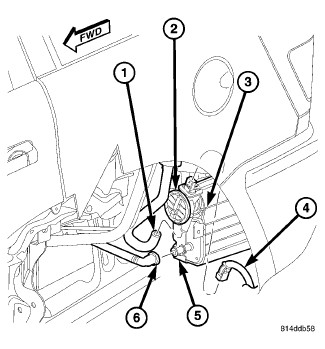

The NVLD pump (2) is attached to the EVAP canister (3). This assembly is located in the left-rear quarter-panel behind the left-rear tire.

1. Raise and support vehicle.
2. Remove left-rear tire.
3. To access EVAP canister or NVLD pump, remove plastic splash shield at rear of left-rear tire.
4. Disconnect electrical connector (4) at pump.
5. Carefully remove vapor/vacuum hoses at pump.

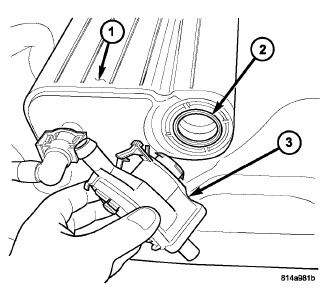

6. Pry outward on tab (3) and rotate pump clock-wise about 70 degrees for removal.





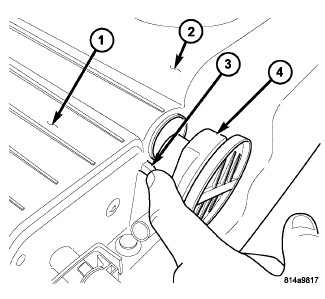

7. Remove NVLD pump o-ring (2) from EVAP canister (1).
