Overhead Console - Installation

INSTALLATION





1. Position the overhead console near the mounting location on the headliner.

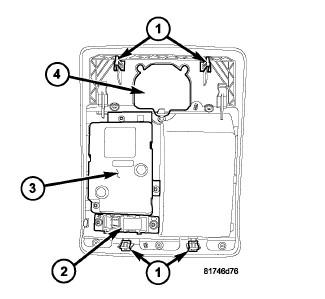

2. Feed the inside rearview mirror wire harness through the mounting hole (4).
3. Reconnect the roof wire harness connectors to the Electronic Overhead Module (EOM) (3) and combination power sunroof/liftgate switch (2) if equipped.
4. Align the snap clips (1) on the overhead console housing with their receptacles in the overhead console bracket.





5. Push upward firmly and evenly on the sides of the overhead console housing (3) over the snap clip locations until the snap clip is fully engaged with its receptacle in the overhead console bracket.
6. Install the inside rearview mirror, Interior Rearview Mirror - Installation.
7. Reconnect the battery negative cable.
