Multiple Displacement Solenoid - Installation

INSTALLATION





1. Verify that MDS bores are free of debris, before solenoid installation.

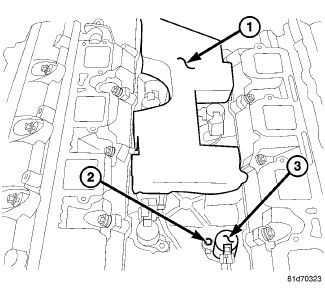

2. Install MDS solenoid(s) (3) fully into block.
3. Install hold down bolt (2) and tighten to 11 Nm (97 in. lbs.).
4. Reconnect the MDS wiring harness to the solenoid(s) (3).
5. Install foam insulator pad (1) if removed.
6. Install the intake manifold. Intake Manifold - Installation
