Circuit Schematic

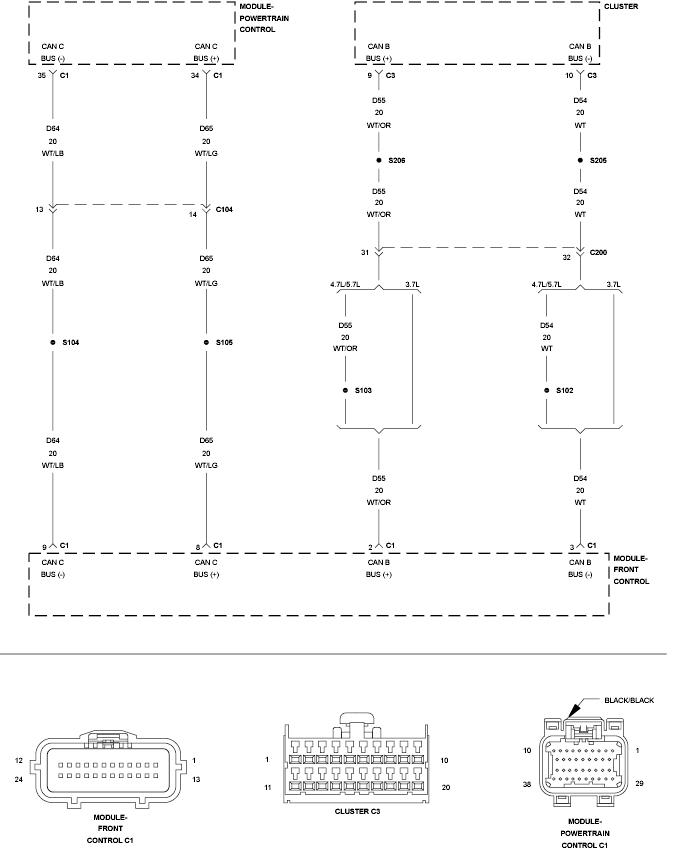

Fig 1: Front Control Module Circuit Schematic

GC0120468

Courtesy of CHRYSLER LLC
