Curb Height Measurement

The wheel alignment is to be checked and all alignment adjustments made with the vehicle at its required curb height specification.

Vehicle height is to be checked with the vehicle on a flat, level surface, preferably a vehicle alignment rack. The tires are to be inflated to the recommended pressure. All tires are to be the same size as standard equipment. Vehicle height is checked with the fuel tank full of fuel, and no passenger or luggage compartment load.

Inspect the vehicle for bent or weak suspension components. Compare the parts tag on the suspect coil spring(s) to the parts book and the vehicle sales code, checking for a match. Once removed from the vehicle, compare the coil spring height to a correct new or known good coil spring. The heights should vary if the suspect spring is weak.

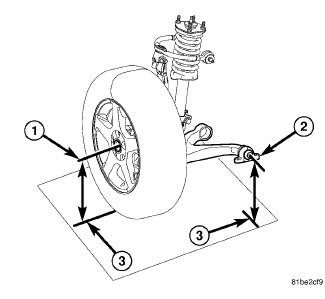

Fig 1: Front Curb Height
GC0117731Courtesy of CHRYSLER LLC
  1. Front Wheel Center Height - Measure the vertical distance between the front wheel center (1) and the ground (3).
  2. Front Cradle Height - On each side of the vehicle, measure the vertical distance between the center of the lower control arm forward pivot bolt (2) to the ground (3) Record the measurement  .
  3. Take the two measurements and subtract them to get the ride height specification.

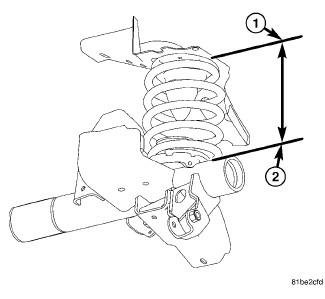

    Fig 2: Rear Curb Height
    GC0117732Courtesy of CHRYSLER LLC
  4. Rear - On each side of the vehicle, measure the distance from the axle tube (2) and the bottom of the upper spring perch (1).
  5. Compare the measurements to the specifications listed in the following Curb Height Specifications chart.
CURB HEIGHT SPECIFICATIONS

MODEL  FRONT  FRONT CROSS HEIGHT  REAR  REAR CROSS (LEFT - RIGHT)
BASE 78.9 mm ± 10 mm 0 mm ± 20 mm 240.5 mm ± 10 mm 0 mm ± 20 mm
3.10 in. ± 0.40 in 0 in. ± 0.79 in 9.5 in. ± 0.40 in. 0 in. ± 0.79 in.
SRT8 100 mm ± 10 mm 0 mm ± 20 mm 213.65 mm ± 10 mm 0 mm ± 20 mm
3.93 in. ± 0.40 in 0 in. ± 0.79 in 8.41 in. ± 0.40 in. 0 in. ± 0.79 in.
