Power Liftgate Module (PLGM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1883-Power Liftgate Position Sensor 1 Circuit Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

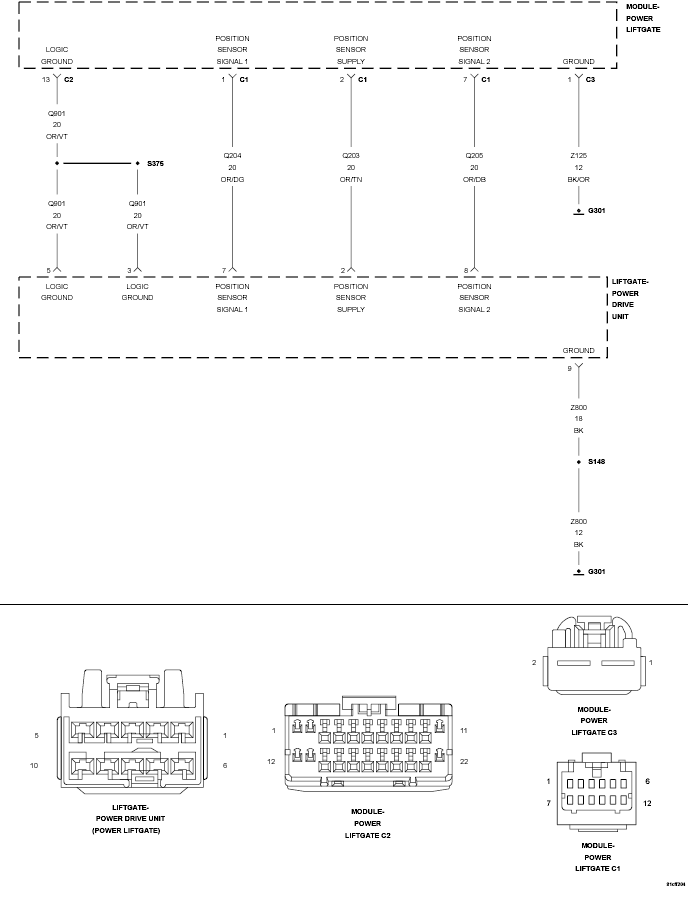

Fig 1: Position Sensor Signal 1 Circuit Schematic
Courtesy of CHRYSLER LLC
