B1978-Power Liftgate Close Direction - Sector Switch Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

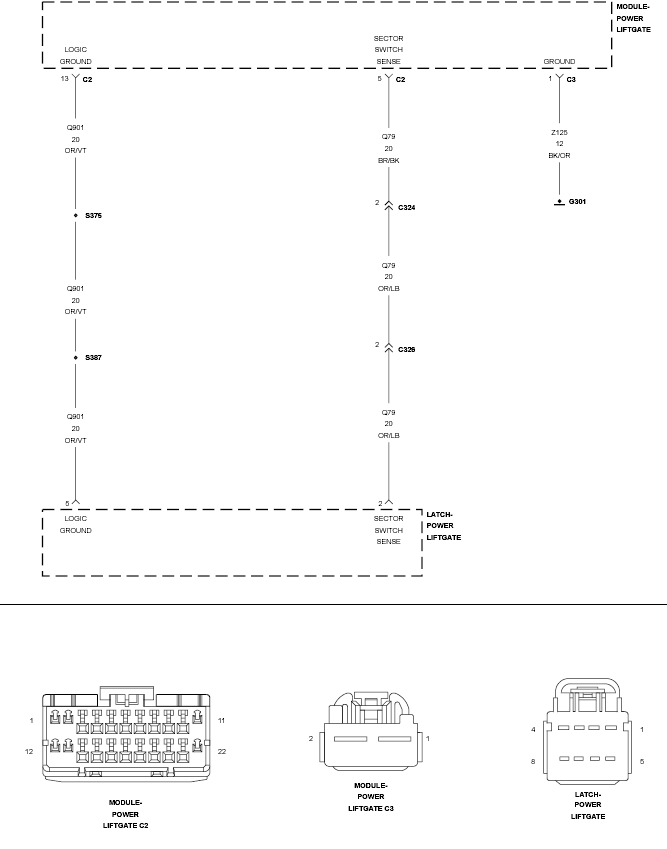

Fig 1: Sector Switch Sense Circuit Schematic
Courtesy of CHRYSLER LLC
