P0315-No Crank Sensor Learned: Notes

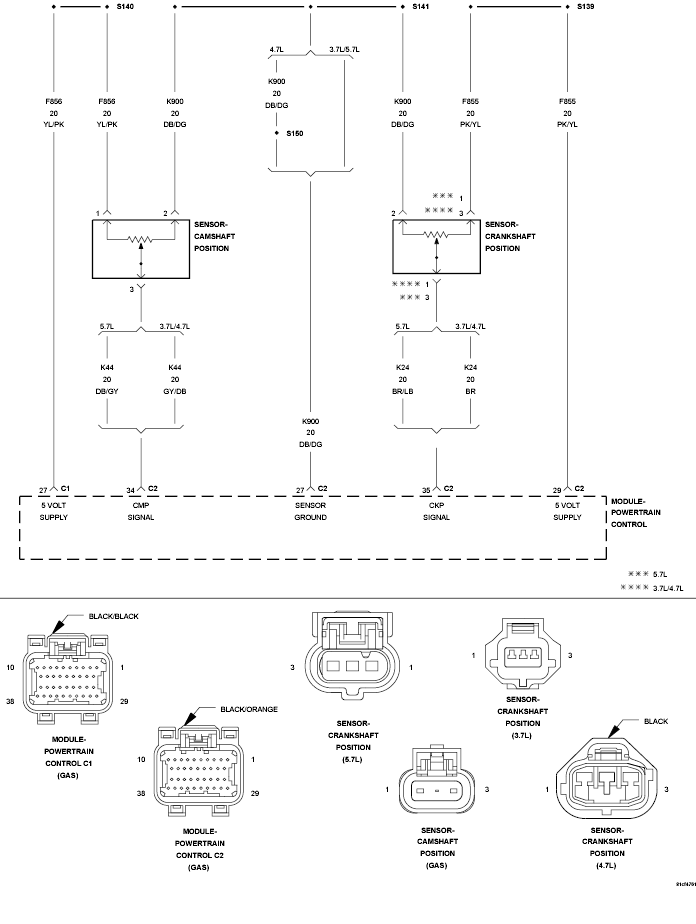

Fig 1: Crankshaft/Camshaft Sensor Circuit
GC0132679Courtesy of CHRYSLER LLC
