DTCS P0507 To P0600 - NGC
>>
P0571-Brake Switch 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

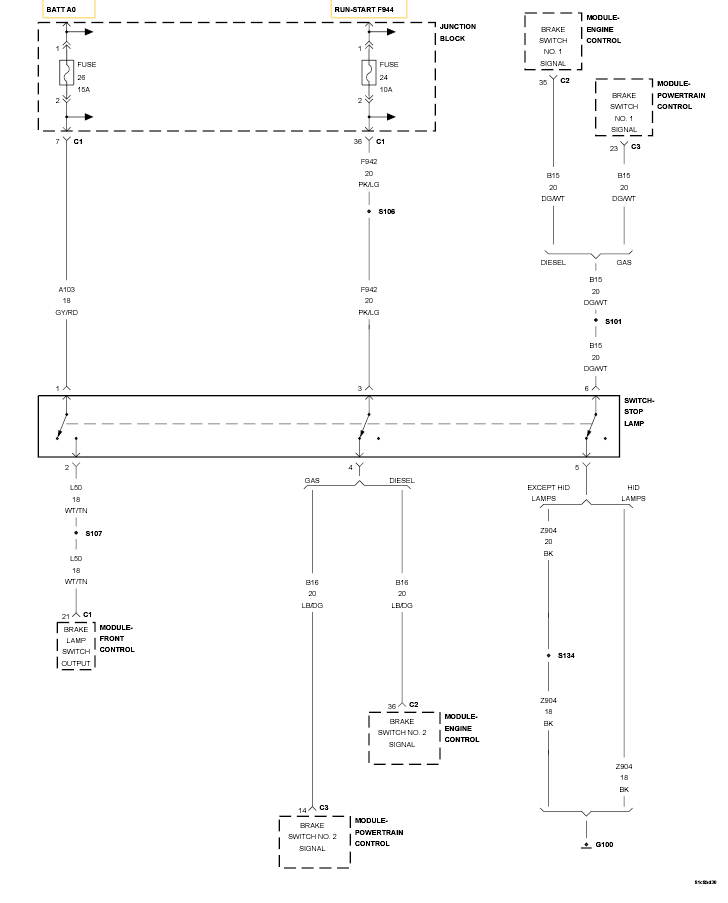

Fig 1: Brake Switch Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
