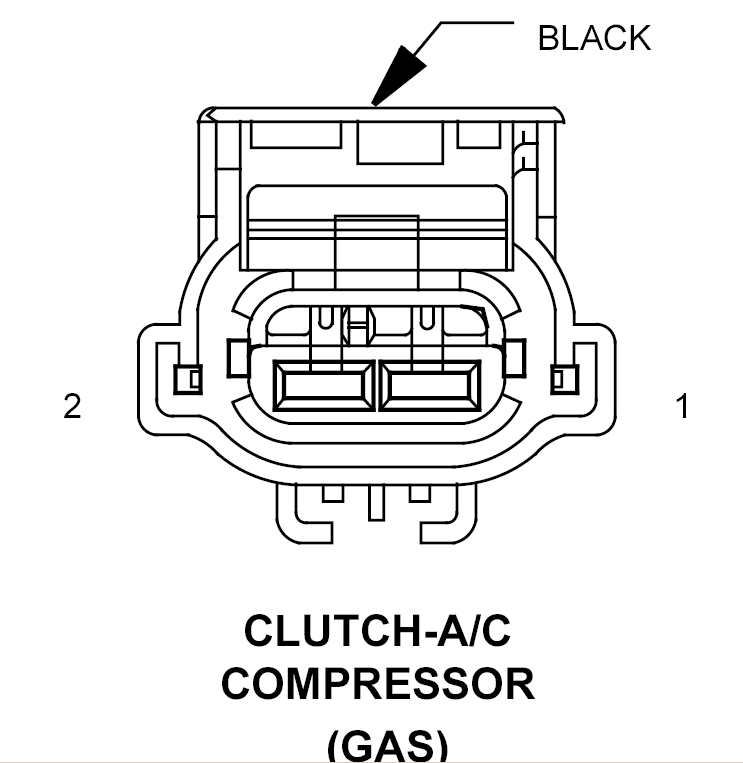

A/C Compressor Clutch (Gas) Connector End View
CLUTCH-A/C COMPRESSOR - BLACK 2-WAY(GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C3 18DB/YL |
A/C CLUTCH RELAY OUTPUT |
| 2 |
Z153 18BK/GY |
GROUND |
