4.7L Engine

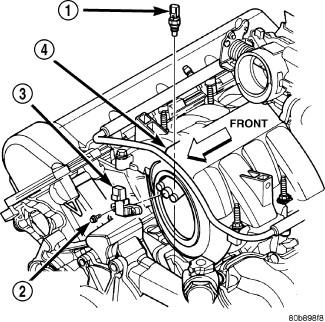

Fig 1: Engine Coolant Temperature Sensor

GC0118287

Courtesy of CHRYSLER LLC

1 - ECT SENSOR

2 - MOUNTING BOLTS (2)

3 - MAP SENSOR

4 - INTAKE MANIFOLD

Apply MOPAR™ thread sealant with PFTE part number 04318034 to sensor threads.
Install sensor (1).
Tighten to 11 N.m (8 ft. lbs.) torque.
Connect electrical connector to sensor (1).
Replace any lost engine coolant. See Cooling - Standard Procedure .
