Sensor, Boost Pressure: Installation: Installation

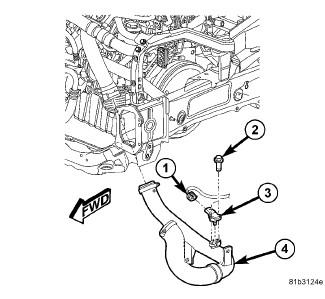

Fig 1: Boost Pressure Sensor
GC0084346Courtesy of CHRYSLER LLC
  1. Install the boost pressure sensor (3) in the charge air tube (4).
  2. Install the 2 mounting bolts (2). Tighten to 8 Nm/6 lb-ft.
  3. Reconnect the electrical connector (1).
  4. Install the belly pan.
  5. Reconnect negative battery cable.
