Section 3 (Power Transfer Unit): Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: AIR CLEANER ASSEMBLY

Courtesy of CHRYSLER LLC

Disconnect negative battery cable (2).
Remove the engine trim cover.
Remove air cleaner assembly (1).
Remove Power Distribution Center (PDC) from bracket.
Raise the vehicle on the hoist.
Remove front halfshafts. Refer to Differential and Driveline/Half Shaft - Removal .

Fig 2: PTU DRAIN - FILL PLUGS
Courtesy of CHRYSLER LLC
Remove drain plug (2) at PTU and allow fluid to drain.
Reinstall drain plug.

Fig 3: MARK PROP SHAFT
Courtesy of CHRYSLER LLC
Mark (2) prop shaft and differential (3) for proper installation.
Remove the rear prop shaft. Refer to Differential and Driveline/Propeller Shaft - Removal .

Fig 4: EXHAUST TO MANIVERTER BOLTS
Courtesy of CHRYSLER LLC
Remove the two exhaust to maniverter (exhaust manifold with catalytic converter) bolts (1).
Unplug the downstream O2 sensor connector.
Remove the exhaust system. Refer to Exhaust System/MUFFLER, Exhaust - Removal .
Lower the vehicle on the hoist.
Unplug the upstream O2 sensor connector.

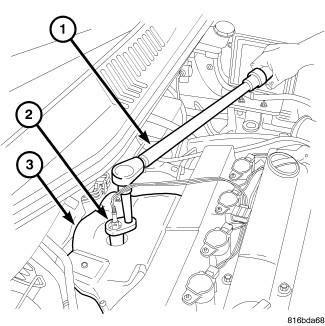

Fig 5: USE O2 SENSOR TOOL - 8439
Courtesy of CHRYSLER LLC
Remove upstream O2 sensor from the maniverter (exhaust manifold with catalytic converter) using O2s (Oxygen Sensor) Remover/Installer 8439 (2).

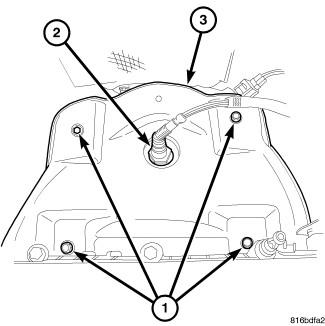

Fig 6: MANIVERTER HEAT SHIELD AND BOLTS
Courtesy of CHRYSLER LLC
Remove the four maniverter heat shield bolts (1).

Fig 7: MANIVERTER SIDE HEAT SHIELD
Courtesy of CHRYSLER LLC
Remove the two retaining bolts (2) and one nut (1) from the maniverter side heat shield (3).

Fig 8: SUPPORT MANIVERTER
Courtesy of CHRYSLER LLC
Remove the seven maniverter to head retaining bolts.
Slide the maniverter up and to the right, support the maniverter (1) with the help of a bungie cord.

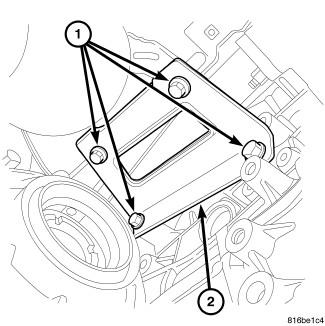

Fig 9: MANIVERTER TO BLOCK SUPPORT BRACKET
Courtesy of CHRYSLER LLC
Raise the vehicle on the hoist.
Remove the four (1) engine to maniverter bracket bolts.

Fig 10: REAR ENGINE MOUNT
Courtesy of CHRYSLER LLC
Remove the rear engine mount through bolt (2).
Remove the three front engine mount to frame bolts and the mount through bolt.

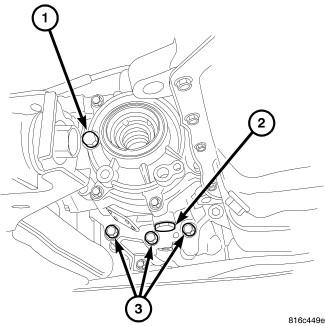

Fig 11: PTU MOUNTING BOLTS
Courtesy of CHRYSLER LLC
Remove the PTU mounting bolts (1, 2).

Fig 12: JACK AT TRANS MOUNT
Courtesy of CHRYSLER LLC
Install a screw jack (2) on front engine mount bracket (1).

Fig 13: REAR MOUNT PTU BOLTS
Courtesy of CHRYSLER LLC
Raise the front of the engine until the rear mount has dropped (1, 2).
Separate the PTU from the transaxle.
Remove and discard old O-ring between Transmission and PTU.

Fig 14: REMOVE - INSTALL PTU
Courtesy of CHRYSLER LLC
Roll the PTU (1) forward and down to remove.
