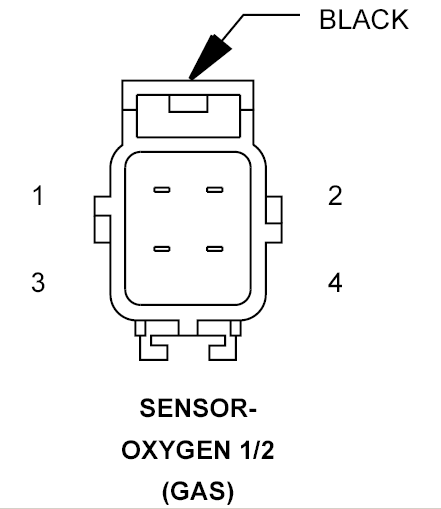

Oxygen Sensor 1/2 (Gas) Connector End View
SENSOR-OXYGEN 1/2 - BLACK 4 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z924 20BK/LB |
GROUND |
| 2 |
K299 20BR/RD |
O2 1/2 HEATER CONTROL |
| 3 |
K904 20DB/DG |
O2 1/2 RETURN |
| 4 |
K141 20DB/YL |
O2 1/2 SIGNAL |
