Fuse: Locations

SPECIFICATIONS

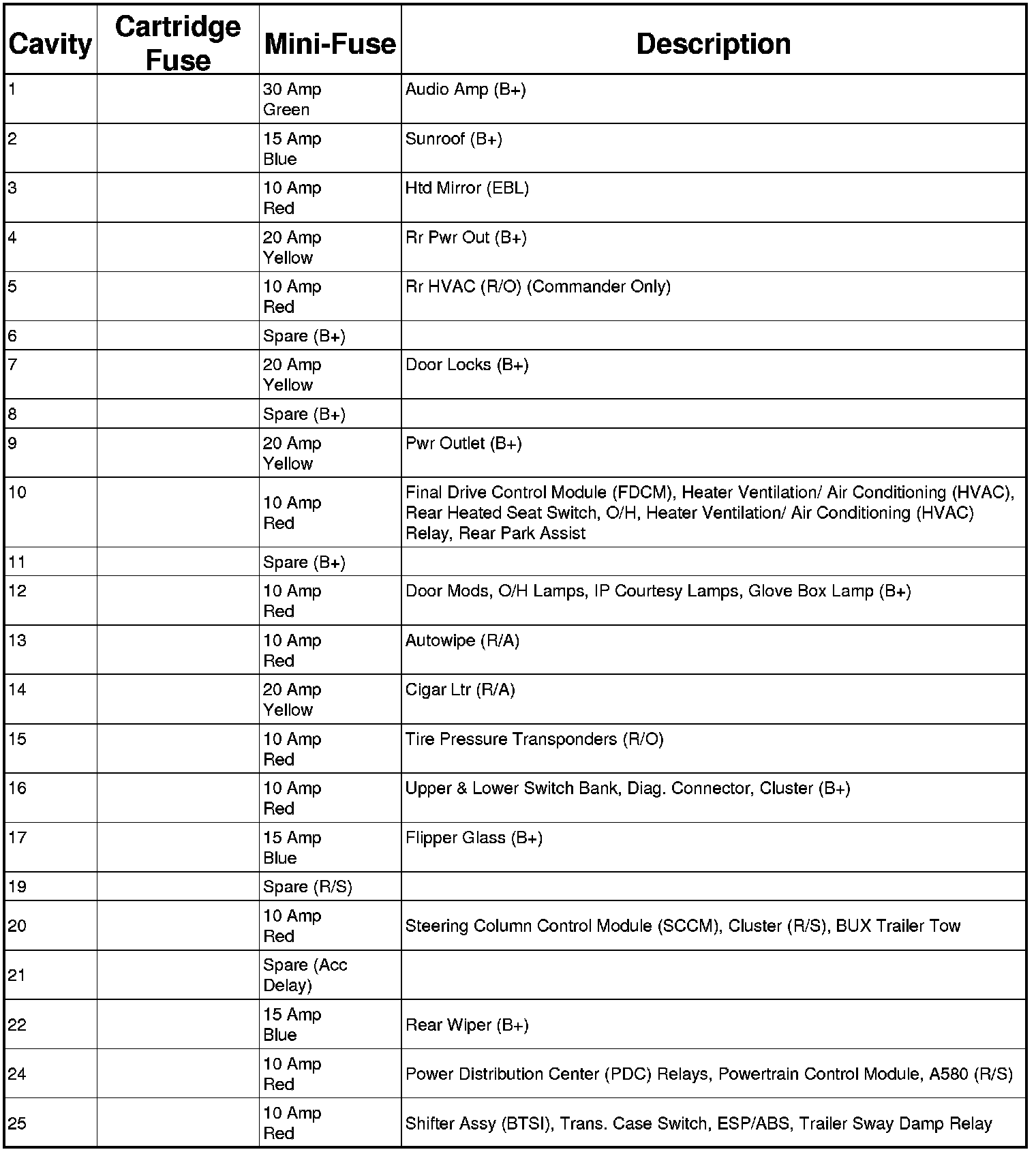

Interior Fuses (Junction Block Front)





The fuse panel is on the lower instrument panel just to the left of the steering column.









Interior Relays (Junction Block Rear)

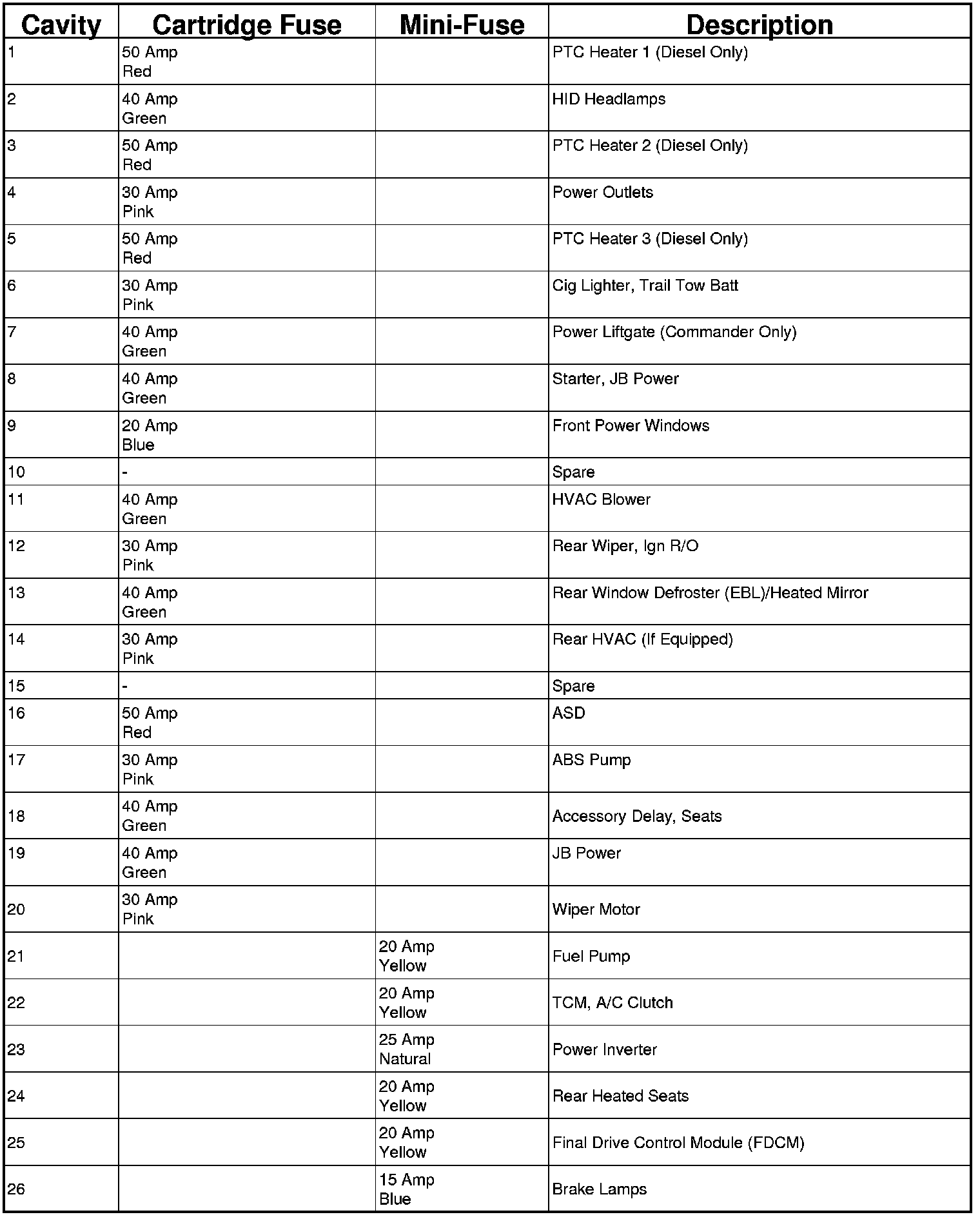

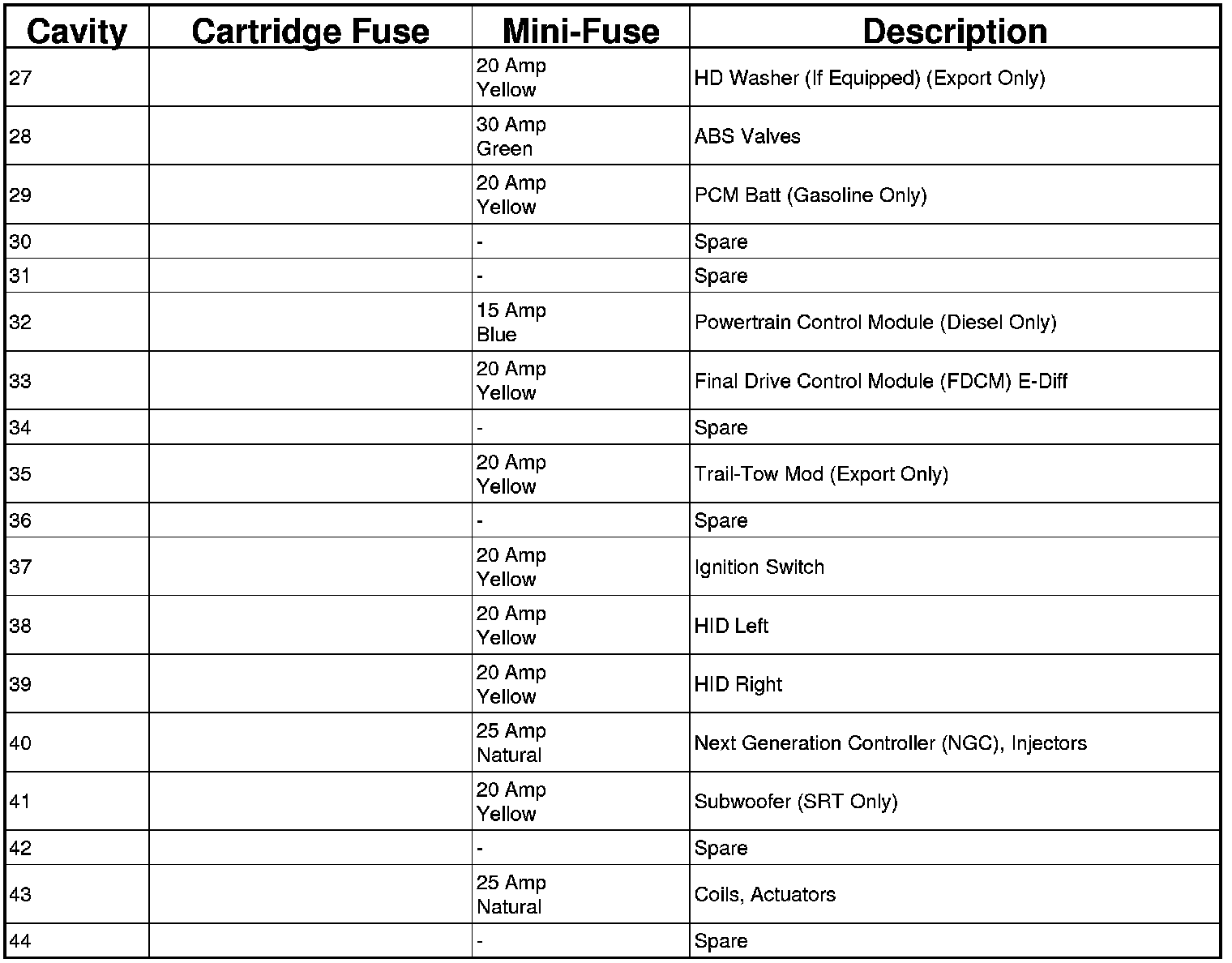

Underhood Fuses (Power Distribution Center)

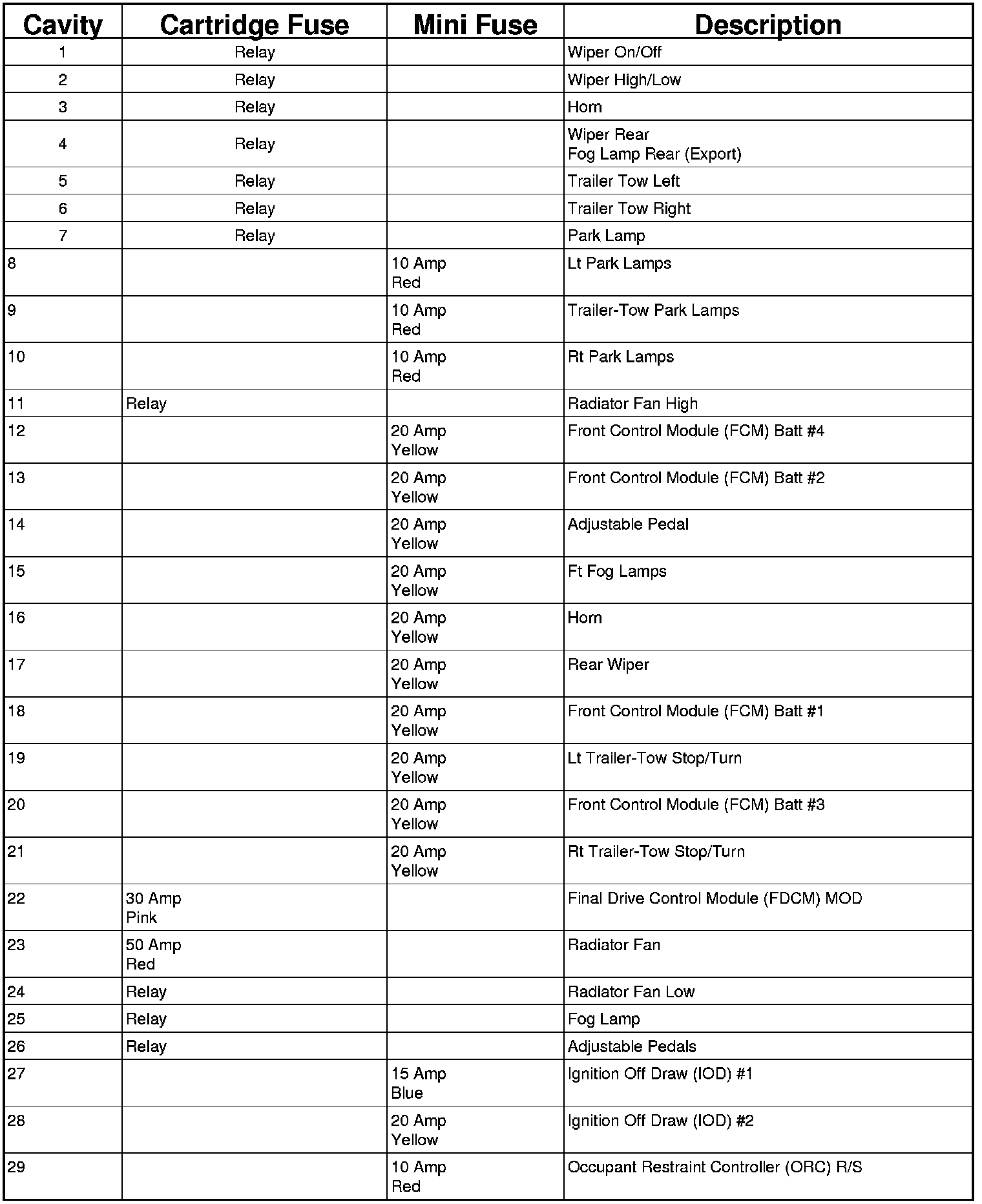

Underhood Fuses (Integrated Power Module)
