Trailer Tow Module - Installation

INSTALLATION

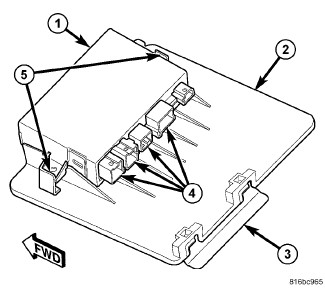

1. Position the Trailer Module (TM) (1) to the mounting plate (2) and insert the two mounting tabs on the sides of the module into the latch feature (5) cavities in the plate.
2. Push downward on the module until the two latch features integral to the mounting plate are fully engaged over the mounting tabs on the sides of the module.
3. Reconnect the four body wire harness connectors to the module connector receptacles (4).
4. Reinstall the rear seat cushion onto the rear floor panel. Seat Cushion Cover - Installation.
5. Reconnect the battery negative cable.
