Engine Torque Specifications

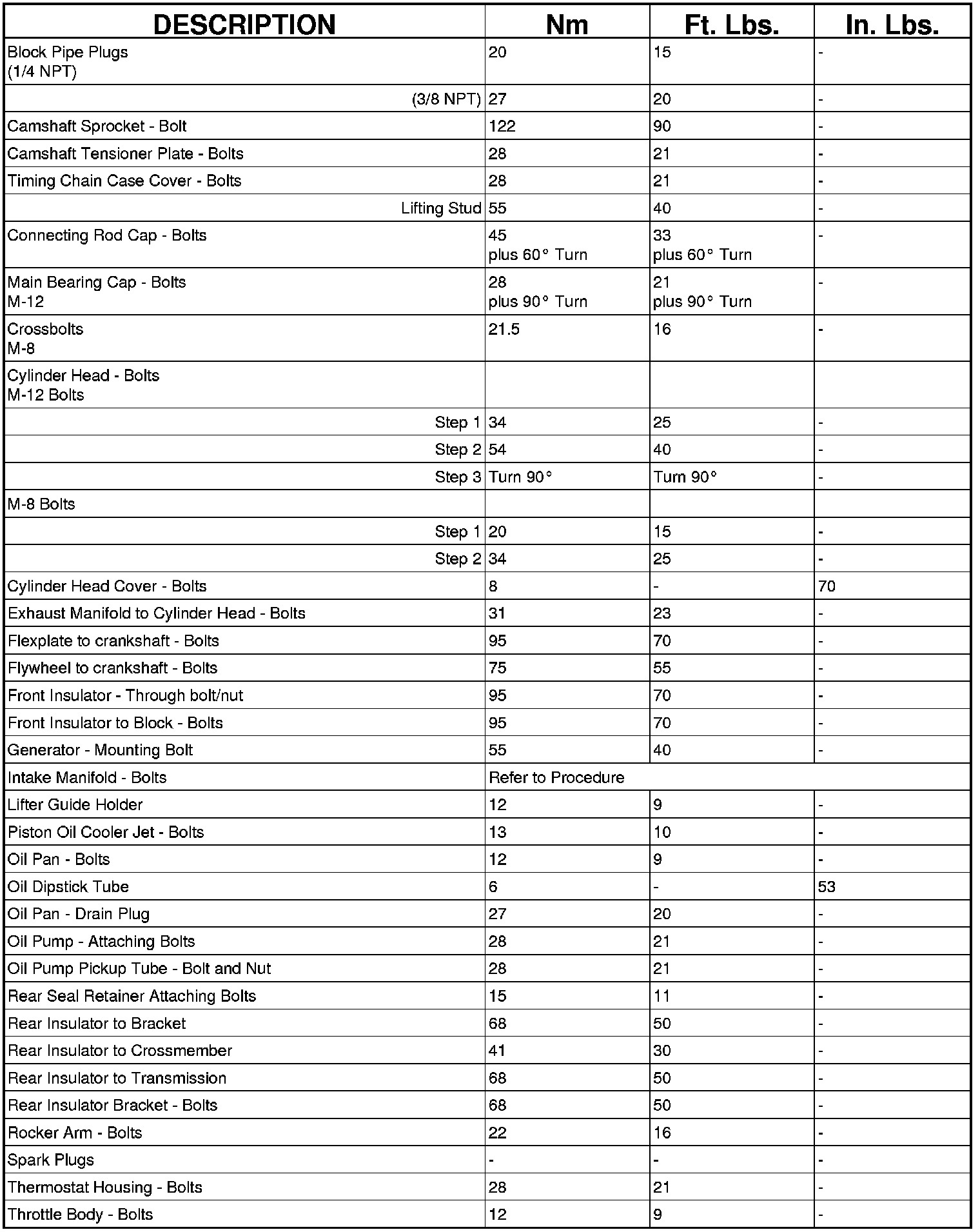

TORQUE CHART 6.1L ENGINE

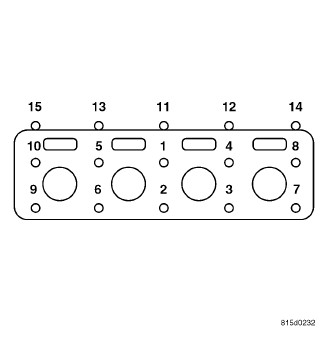

CYLINDER HEAD






INTAKE MANIFOLD





Intake Manifold Bolts 12 Nm (9 ft. lbs).


MAIN BEARING CAP

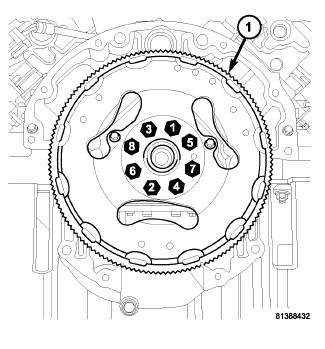

FLYWHEEL/FLEX PLATE

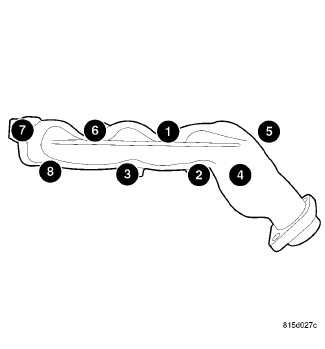

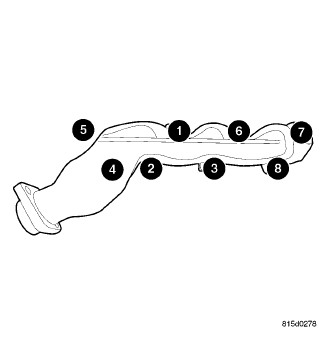

EXHAUST MANIFOLD
