Removal

REMOVAL

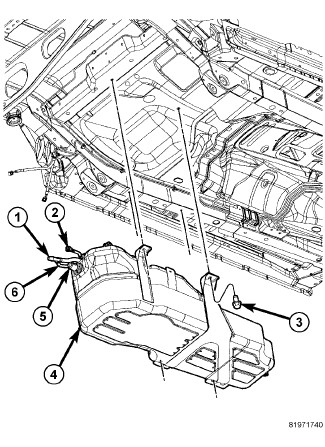

1. Drain and remove fuel tank (4). (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - REMOVAL). Fuel Tank - Removal

2. Remove the fuel pump module Fuel Tank - Removal
3. Remove the fuel level sending unit.
