42RLE Automatic Transmission






42RLE AUTOMATIC TRANSMISSION

GENERAL SPECIFICATIONS






GEAR RATIOS






BEARING PRELOAD (Drag Torque)






CLUTCH PACK






INPUT SHAFT






OIL PUMP CLEARANCES






GEAR TRAIN MEASUREMENTS

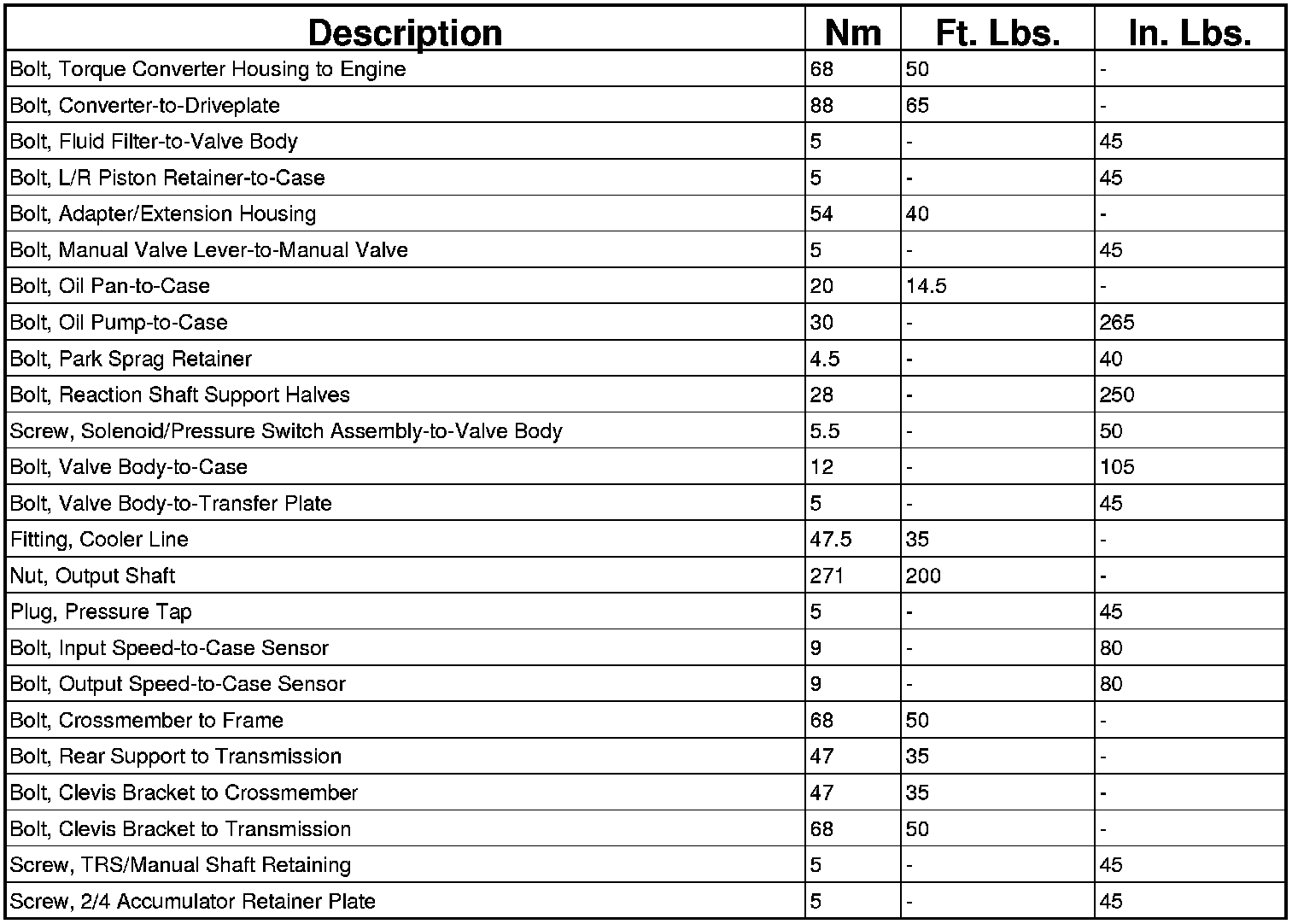

TORQUE SPECIFICATIONS
